Pre-Insulated Pipe Supports play a critical role in modern industrial piping systems by maintaining insulation continuity, reducing thermal losses, preventing condensation, and protecting pipelines from long-term damage. In applications such as LNG facilities, chemical plants, power generation projects, district cooling systems, and cryogenic pipelines, traditional pipe supports can create thermal bridges that reduce insulation performance. This article explains how pre-insulated pipe supports solve common engineering challenges, improve operational safety, and provide reliable support solutions. Yangzhou Tianshun provides customized pre-insulated pipe support solutions designed for different temperature conditions, load requirements, and industrial applications.

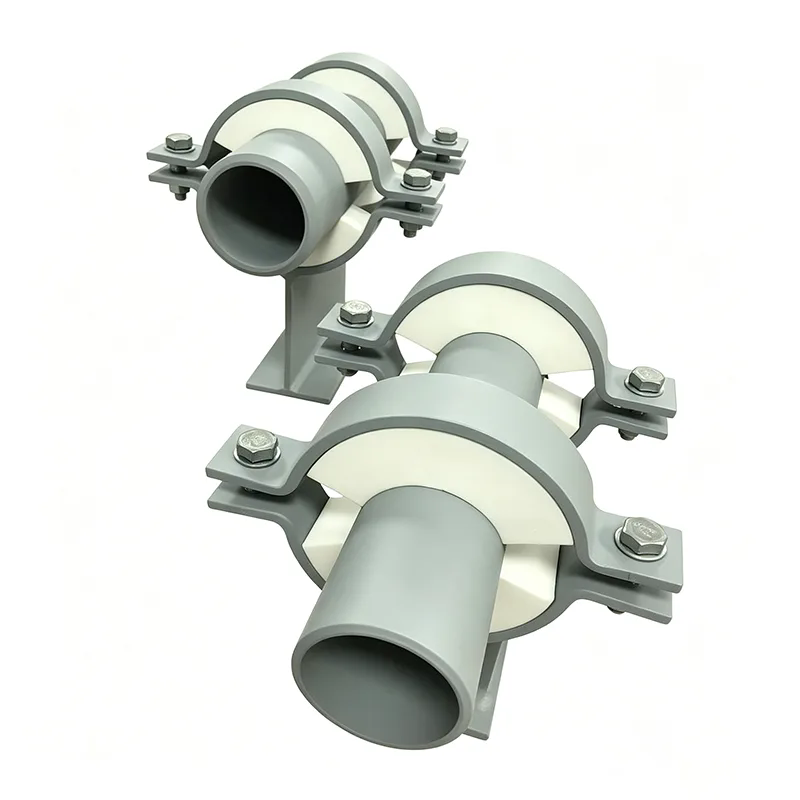

Pre-Insulated Pipe Supports are specially engineered pipeline support components that combine mechanical load-bearing capability with thermal insulation protection. Unlike conventional pipe shoes or supports, these products include an integrated insulation section between the pipe and the supporting structure.
In many industrial piping systems, insulation is installed around pipes to maintain temperature stability. However, when a standard metal support directly contacts the pipe surface, it creates a thermal bridge. This connection allows unwanted heat transfer, which can result in condensation, energy loss, freezing problems, or corrosion beneath insulation.
A pre-insulated pipe support eliminates this issue by integrating a high-performance insulation block into the support structure. The design allows the pipeline to remain mechanically stable while maintaining continuous insulation performance.
Yangzhou Tianshun specializes in manufacturing pipeline support solutions, including pre-insulated pipe supports designed for cold service, cryogenic applications, and high-temperature industrial systems. The company develops customized designs according to project requirements, operating temperatures, pipe sizes, and installation conditions.
The working principle of pre-insulated pipe supports is based on separating the structural load path from the thermal conduction path. The support transfers the weight of the pipeline while the insulation section minimizes heat transfer between the pipe and external structures.
| Component | Function |
|---|---|
| Steel Saddle or Shoe | Provides mechanical strength and transfers pipeline loads to the structure. |
| Insulation Block | Creates thermal separation and reduces heat transfer. |
| Vapor Barrier | Prevents moisture penetration into insulation materials. |
| Sliding Plate (Optional) | Allows pipeline movement caused by thermal expansion and contraction. |
For cold pipelines, the insulation layer prevents external heat from entering the system and reduces condensation risks. For hot pipelines, it minimizes heat loss and improves energy efficiency.
The integrated structure also reduces installation difficulties because the insulation support arrives as a complete assembly rather than requiring additional insulation work at the construction site.
Industrial pipeline systems often experience failures caused by improper support design. Traditional supports may appear simple, but they can create serious operational challenges over time.
| Common Problem | Impact on Pipeline System | Pre-Insulated Support Solution |
|---|---|---|
| Thermal Bridge Formation | Increased heat transfer and reduced insulation performance | Integrated insulation block separates pipe from structure |
| Condensation and Ice Formation | Corrosion risk and maintenance problems | Maintains insulation continuity and prevents moisture exposure |
| Energy Loss | Higher operating costs | Improves thermal efficiency of hot and cold pipelines |
| Insulation Damage | Frequent repairs and downtime | Provides a stable supporting interface |
For LNG and cryogenic systems, even a small thermal bridge can significantly affect system performance. A properly designed pre-insulated pipe support ensures that the insulation system remains effective at critical support locations.
Choosing the correct support system can influence pipeline safety, maintenance requirements, and long-term operating costs. The major advantages include:
Pre-insulated pipe supports are widely used in industries where temperature control and pipeline reliability are essential.
| Industry | Application Example |
|---|---|
| LNG and Cryogenic Industry | Low-temperature pipelines requiring thermal isolation |
| Power Generation | Steam and process pipelines with high temperature requirements |
| Chemical Processing | Corrosive and temperature-sensitive process lines |
| District Cooling | Chilled water distribution networks |
| Food and Pharmaceutical | Clean temperature-controlled piping systems |
Yangzhou Tianshun supplies pipeline support products for different industrial environments and provides solutions based on actual project conditions.
Selecting the correct support requires consideration of several engineering factors. Choosing an unsuitable product may result in insulation failure or excessive pipeline stress.
Important technical parameters usually include insulation density, compressive strength, thermal conductivity, support material, and load capacity.
| Parameter | Typical Consideration |
|---|---|
| Temperature Range | From cryogenic conditions to high-temperature applications |
| Insulation Material | PU foam, PIR, mineral wool, or customized materials |
| Support Material | Carbon steel, stainless steel, or special alloys |
| Movement Requirement | Fixed, sliding, or guided support design |
Yangzhou Tianshun focuses on producing reliable pipeline support solutions through professional manufacturing processes and strict quality control. The company provides customized pre-insulated pipe supports for different engineering requirements.
The manufacturing process includes material inspection, precision fabrication, insulation integration, dimensional checking, and final quality verification. Each support is designed to achieve reliable mechanical performance while maintaining thermal insulation effectiveness.
With extensive experience in pipeline support manufacturing, Yangzhou Tianshun serves industries including energy, chemical processing, power generation, and industrial construction. The company provides engineering support to help customers select suitable solutions for complex piping systems.
Cold pipelines require continuous insulation protection. Traditional metal supports create thermal bridges that may cause condensation and corrosion. Pre-insulated pipe supports maintain insulation continuity and reduce these risks.
Yes. They are suitable for hot pipelines because they reduce heat transfer and improve energy efficiency. The insulation material can be selected according to operating temperature requirements.
Yes. Yangzhou Tianshun provides customized solutions based on pipe size, insulation thickness, load requirements, temperature conditions, and installation methods.
Because the insulation and support structure are integrated before delivery, installation teams can reduce field assembly work and improve project efficiency.
Customers should provide pipe specifications, operating temperature, insulation requirements, support type, and movement conditions. This information helps engineers design the correct solution.
Pre-Insulated Pipe Supports are essential components for modern industrial piping systems because they solve the challenges caused by thermal bridges, insulation damage, condensation, and energy loss. A properly designed support system improves pipeline reliability, reduces maintenance requirements, and extends equipment service life.
With professional manufacturing experience and customized engineering capabilities, Yangzhou Tianshun provides dependable pre-insulated pipe support solutions for demanding industrial applications worldwide. If you need a reliable support system designed according to your pipeline requirements, please contact us for professional assistance and a customized solution.
