Article Summary:
Industrial piping systems often experience thermal expansion, contraction, vibration, and changing operating loads. Without a suitable support solution, these movements can create excessive stress, pipeline deformation, equipment damage, and unexpected maintenance costs. A Variable Spring Hanger provides controlled vertical movement while maintaining reliable support for pipelines under changing conditions. This article explains how Variable Spring Hangers work, why they are important, how to select the right model, and how Yangzhou Tianshun provides customized solutions for demanding industrial applications.

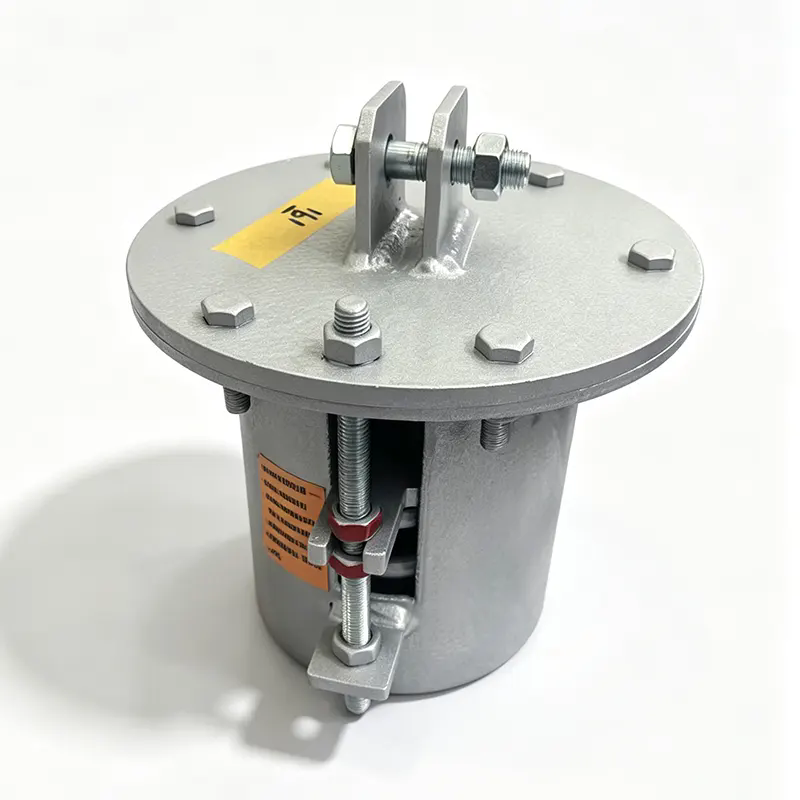

A Variable Spring Hanger is a specialized pipeline support device designed to absorb vertical movement while continuously supporting the weight of piping systems. It uses a spring mechanism that changes its supporting force according to the movement of the pipeline. Unlike rigid supports, this type of hanger allows controlled displacement caused by temperature variations while reducing stress transferred to connected equipment.
In industrial environments, pipelines rarely remain in a fixed position. Steam lines, hot oil pipelines, chemical processing pipes, and power generation systems expand when heated and contract when cooled. If the pipeline movement is restricted, additional stress may appear at weld joints, valves, flanges, and equipment connections.
A properly designed Variable Spring Hanger provides flexibility and stability by allowing necessary movement while maintaining safe load distribution. It is widely used in power plants, petrochemical facilities, oil and gas projects, and other industries where reliable pipeline operation is essential.
Yangzhou Tianshun specializes in manufacturing pipeline support products including Variable Spring Hangers, constant spring supports, and customized pipe support solutions. The company develops products according to different project requirements to help customers achieve safer and more efficient piping systems.
The operating principle of a Variable Spring Hanger is based on the relationship between spring compression or extension and supporting force. When the pipeline moves vertically due to thermal expansion, the spring inside the hanger changes its position and generates a corresponding reaction force.
The hanger does not provide a completely constant load. Instead, the support force varies within an acceptable range throughout the movement distance. This characteristic makes it suitable for applications where moderate displacement occurs and some load variation is acceptable.
| Working Element | Function |
|---|---|
| Spring Coil | Provides elastic supporting force and absorbs vertical pipeline movement. |
| Load Adjustment Mechanism | Allows adjustment according to actual pipeline weight requirements. |
| Housing Structure | Protects internal components from external environmental conditions. |
| Connecting Rod | Transfers movement between the pipeline and spring assembly. |
| Travel Indicator | Helps monitor operating displacement during service. |
During operation, the Variable Spring Hanger continuously balances pipeline weight and movement. This reduces excessive loading on supporting structures and protects sensitive equipment connections from unwanted forces.
Industrial companies often face several challenges when managing large piping networks. Traditional rigid supports may not accommodate thermal movement, causing operational risks and higher maintenance requirements.
A Variable Spring Hanger helps solve these common problems:
For industries operating high-temperature pipelines, reliable support selection is critical. A poorly designed support system may result in leakage, fatigue damage, or shortened equipment service life.
Choosing the correct Variable Spring Hanger requires careful consideration of operating conditions, pipeline weight, movement range, and installation environment. Selecting an unsuitable model may reduce performance and create additional stress on the piping system.
| Selection Factor | Important Consideration |
|---|---|
| Operating Load | Determine the actual pipeline weight during operating conditions. |
| Travel Distance | Select a hanger according to required vertical movement range. |
| Movement Direction | Confirm whether pipeline movement is upward or downward. |
| Installation Space | Check available structural space before choosing the model. |
| Environmental Conditions | Consider temperature, corrosion, and outdoor exposure requirements. |
| Material Requirements | Select suitable materials according to project specifications. |
Professional manufacturers can provide engineering support based on pipeline drawings, load information, and project standards. Yangzhou Tianshun offers customized Variable Spring Hanger solutions designed for different industrial applications and installation conditions.
Variable Spring Hangers are widely applied in industries where pipeline movement and load control are important. Their flexible support performance makes them suitable for complex operating environments.
In these applications, pipelines may experience significant temperature differences between startup, normal operation, and shutdown periods. Variable Spring Hangers help maintain structural stability throughout these operating cycles.
Selecting the correct pipe support method directly affects the safety, durability, and operating efficiency of industrial piping systems. Traditional rigid supports can hold pipelines in fixed positions, but they may create excessive stress when thermal movement occurs. A Variable Spring Hanger provides a more flexible approach by allowing controlled movement while maintaining continuous support.
| Comparison Item | Variable Spring Hanger | Traditional Rigid Support |
|---|---|---|
| Movement Capability | Allows vertical pipeline movement caused by thermal expansion. | Restricts movement and may increase stress concentration. |
| Load Adjustment | Provides changing support force according to displacement. | Usually provides fixed supporting force. |
| Stress Distribution | Helps reduce stress transferred to connected equipment. | May create higher stress at connection points. |
| Application Flexibility | Suitable for pipelines with regular thermal movement. | Better for stable systems without significant movement. |
| Maintenance Requirements | Can improve system reliability and reduce damage risks. | May require additional inspection if movement is restricted. |
For modern industrial facilities, flexible support systems are becoming increasingly important. Engineers need solutions that can handle changing operating conditions while maintaining long-term stability. Variable Spring Hangers provide a practical balance between movement absorption and structural support.
Proper installation is essential for achieving the expected performance of a Variable Spring Hanger. Even high-quality support equipment may fail to operate correctly if installation procedures are not followed carefully.
Important installation considerations include:
Routine maintenance should include checking connection points, spring condition, movement indicators, and surrounding structures. Early detection of problems can prevent unexpected downtime and improve the service life of the entire piping system.
Yangzhou Tianshun focuses on manufacturing reliable pipeline support equipment with attention to structural strength, manufacturing precision, and practical application requirements. The company provides solutions that help industrial customers improve pipeline safety and operational stability.
Working with an experienced manufacturer can provide significant advantages throughout project development and operation. A professional supplier understands that every industrial piping system has different requirements.
| Benefit | Value for Customers |
|---|---|
| Customized Design | Products can be adjusted according to load, movement, and installation conditions. |
| Reliable Manufacturing | Stable production processes improve product consistency and durability. |
| Technical Support | Professional guidance helps customers select suitable support solutions. |
| Application Experience | Knowledge from different industries helps solve complex pipeline challenges. |
| Long-Term Reliability | High-quality supports help reduce maintenance frequency and operating risks. |
When choosing a Variable Spring Hanger supplier, customers should evaluate manufacturing capability, product quality, engineering experience, and after-sales support. A dependable supplier can contribute to safer and more efficient industrial projects.
Q1: What is the main purpose of a Variable Spring Hanger?
A Variable Spring Hanger is designed to support pipelines while allowing controlled vertical movement caused by thermal expansion and contraction. It helps maintain proper load distribution and reduces stress on piping components.
Q2: What industries use Variable Spring Hangers?
They are commonly used in power generation, petrochemical, oil and gas, chemical processing, energy, and industrial manufacturing projects where pipelines experience temperature changes and movement.
Q3: What is the difference between a Variable Spring Hanger and a Constant Spring Hanger?
A Variable Spring Hanger changes its supporting force as the spring moves, while a Constant Spring Hanger is designed to provide nearly constant supporting force throughout the entire travel range. The choice depends on system requirements and allowable load variation.
Q4: How can I determine the correct Variable Spring Hanger model?
The correct model depends on factors such as pipeline weight, movement distance, operating temperature, installation location, and project specifications. Professional manufacturers can assist with technical selection.
Q5: Why is regular inspection important for Variable Spring Hangers?
Regular inspection helps ensure that the spring mechanism, connection components, and support structure remain in good condition. It can prevent unexpected failures and maintain stable pipeline operation.
Q6: Can Variable Spring Hangers be customized?
Yes. Different industrial projects may require customized designs based on load capacity, dimensions, materials, and environmental conditions. Manufacturers can provide solutions according to specific application requirements.
A Variable Spring Hanger plays an important role in maintaining the safety and efficiency of industrial piping systems. By allowing controlled vertical movement while supporting changing loads, it helps reduce pipeline stress, protect connected equipment, and improve long-term system reliability.
Choosing the right support solution requires careful evaluation of operating conditions, engineering requirements, and product quality. With professional manufacturing experience and customized service capabilities, Yangzhou Tianshun provides dependable Variable Spring Hanger solutions for various industrial applications.
If you are looking for high-quality Variable Spring Hanger products designed for your specific pipeline requirements, please contact Yangzhou Tianshun today. Our professional team is ready to provide customized support solutions and technical assistance. Feel free to contact us for more information and project consultation.
