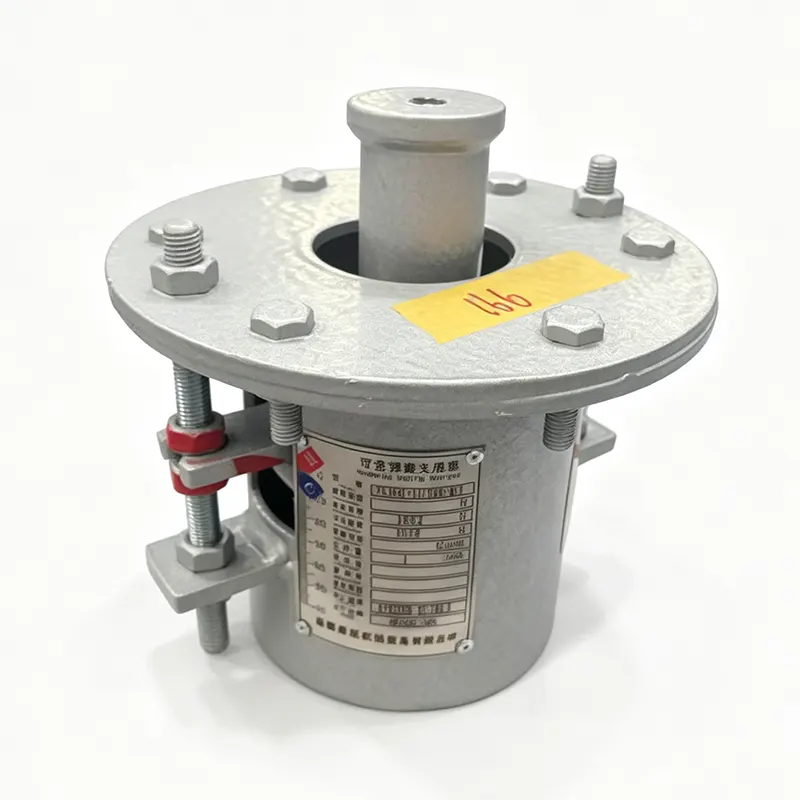

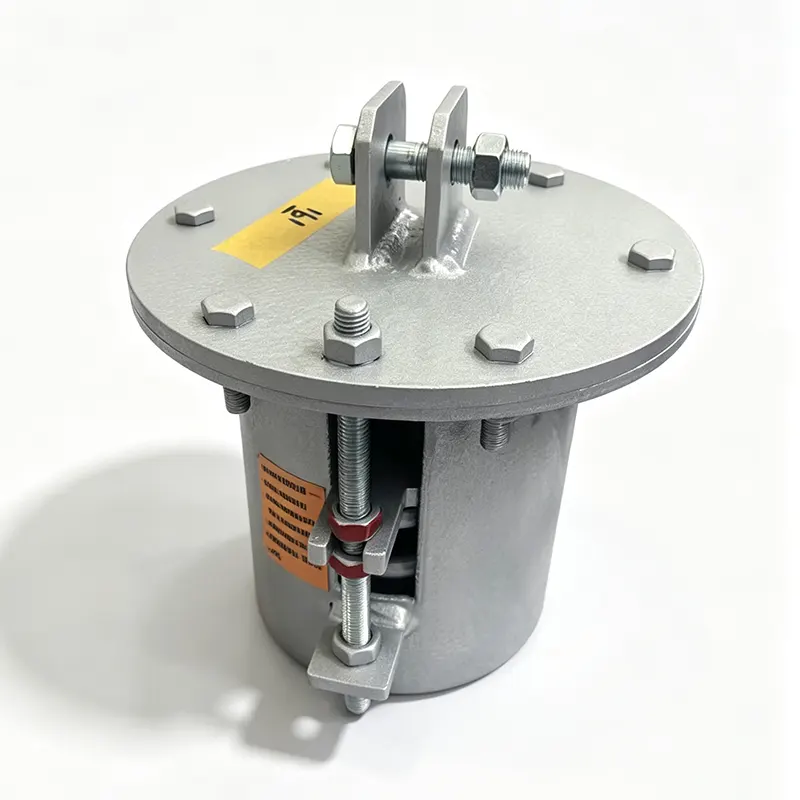

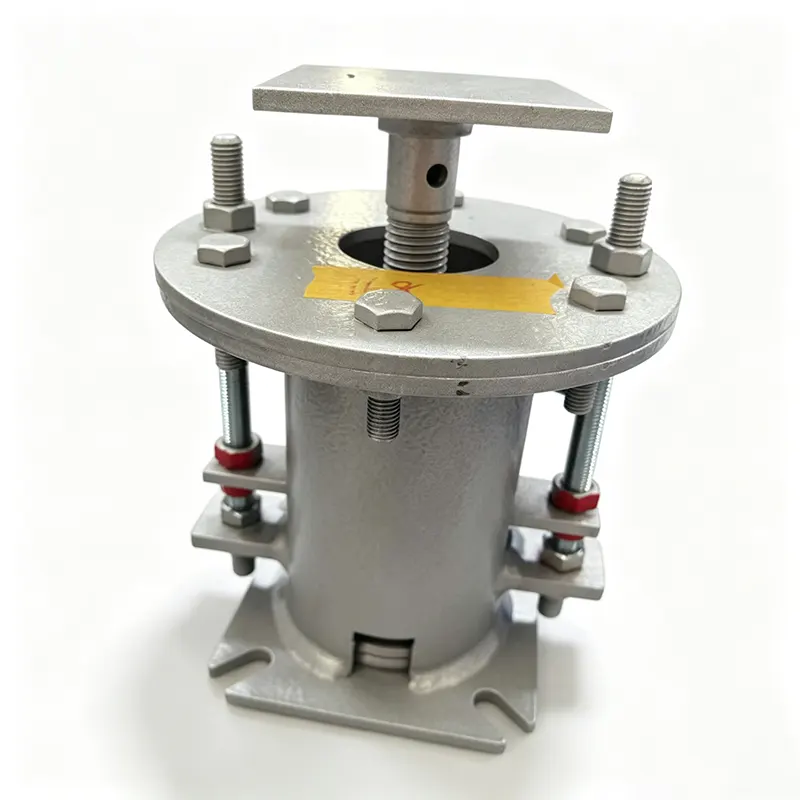

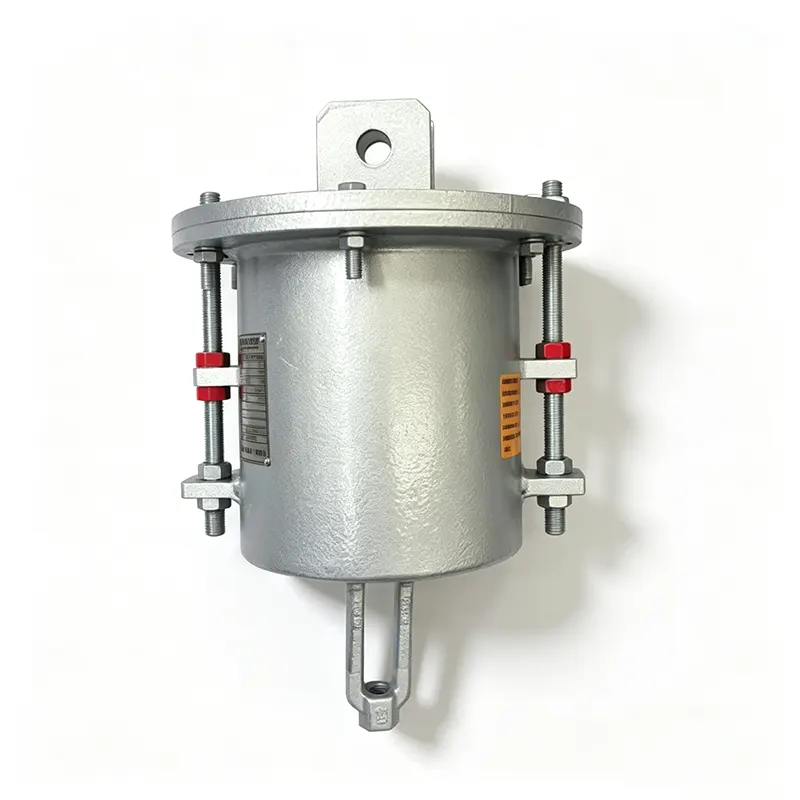

High-temperature Variable Spring Hanger

Yangzhou Tianshun manufactures variable spring hangers for the power, petrochemical, and industrial sectors from a 35,000 m² factory in Jiangsu, China. Our high-temperature variants are built to handle pipe surface temperatures well above ambient while maintaining predictable load performance. Fourteen years of dedicated pipe support experience and a quality system certified to ISO 9001:2015 back every unit we ship to over 45 countries.

Where a variable spring hanger fits

Not every pipe run requires a constant load. When the thermal displacement is limited, a variable spring hanger offers a reliable and cost-conscious solution. As the pipe expands or contracts vertically, the support force changes within a known and controlled range. The spring is sized so that this load variation stays within the limits set by the pipe stress analysis, preventing overstress on connected equipment while keeping the pipe properly supported from cold to hot.

For high-temperature service, the design moves beyond standard spring coils. Elevated pipe temperatures can radiate or conduct heat into the hanger assembly, softening ordinary spring steel and shifting the calibrated load. High-temperature variable spring hangers address this with material selection and surface protection that preserve the specified spring rate and load range across the operating envelope.

What makes a high-temperature design reliable

Spring materials rated for elevated temperatures

Standard springs lose strength and sag when temperatures climb. We select coil materials suited to the actual exposure. For moderately elevated conditions up to 150 °C, 50CrVA or 60Si2Mn retain stable mechanical properties. When temperatures reach 300 °C or higher, nickel-based alloys such as Inconel X-750 are specified. Each heat of material comes with full mill certificates and traceability records, confirming the composition and heat treatment match the required grade.

Load variation kept within project limits

The variable spring hanger produces a different force at the cold position, the hot operating position, and every intermediate point. Our design engineers work with the allowable load variation from the client’s pipe stress report and select a spring that limits the deviation, typically to 15% or 25% of the working load, though tighter limits can be met when required. Each unit is set and tested on a calibrated bench to verify that the load at the cold and hot positions falls within the specified band.

Corrosion and heat protection for the hardware

The housing and structural components are finished with hot dip galvanizing or high-temperature epoxy paint as standard. For particularly aggressive or cyclic heat exposure, we offer additional thermal barrier coatings or fabricate the housing from stainless steel. These measures prevent scaling, rust, and surface degradation that could interfere with spring movement over years of service.

On-site adjustment without removing the hanger

A load adjustment screw and a dial gauge, marked in 2% steps, allow the site team to fine-tune the installed load by up to ±10% to ±20%, depending on the model. This field adjustability is valuable when the installed condition differs slightly from the design drawing, or when the pipe routing changes during construction.

Travel stops and visible scale

Every hanger incorporates upper and lower travel stops to guard against overstroke. A clearly visible travel scale lets installation and maintenance personnel confirm the current position at a glance. The cold preset position is locked with removable travel stops, allowing hydrostatic testing and chemical cleaning to proceed without deflecting the spring.

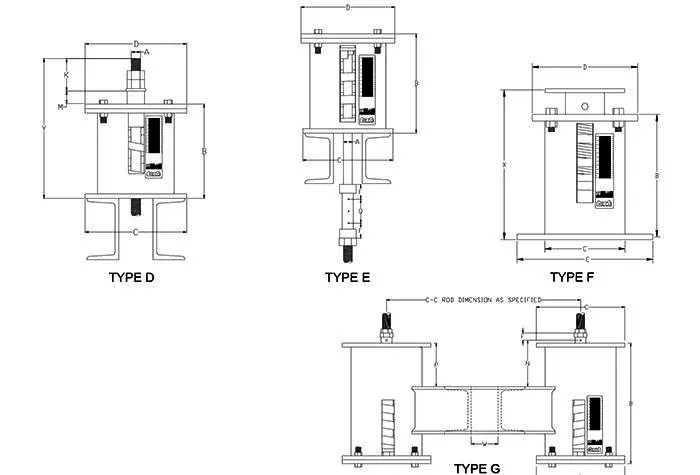

Technical overview

Custom travels, load ratings, and high-temperature materials are handled as part of our regular supply. When provided with an enquiry, we convert between international standards and confirm the technical compatibility before manufacture.

Quality control and documentation

Our ISO 9001 certified quality system governs every step, from incoming spring wire inspection to final load testing. Each high-temperature variable spring hanger is preset to the client specified cold load and travel on our test bench. We record loads at the cold, intermediate, and hot positions and confirm the variation is within tolerance. These records are retained for the full traceability package and can be supplied with the shipment.

Material certificates for spring coils, structural steel, and protective coatings are traceable to the heat or batch. When projects require compliance with ASME, EN, or other international piping codes, we provide the documentation packages needed for approval.

Where high-temperature variable spring hangers are applied

These hangers support medium to high-temperature piping systems where vertical displacement is present but not extreme. Typical installations include auxiliary steam lines, boiler feedwater piping, economizer inlet and outlet lines, hot oil circuits in refineries and chemical plants, medium-pressure steam distribution in industrial facilities, and high-temperature air ducts. In each case the hanger accommodates vertical movement while keeping the pipe stress within design limits, without the cost and envelope of a constant load support.

Frequently asked questions

How do I choose between a variable spring hanger and a constant spring hanger?

The decision comes down to allowable load variation. If your pipe stress report permits a load change between the cold and hot positions, a variable spring hanger provides reliable support at a lower cost. Where the pipe cannot accept any meaningful variation, a constant spring hanger is required. Our engineering team can review your load and travel data and recommend the appropriate type.

What is the maximum operating temperature for a high-temperature variable spring hanger?

With standard alloy spring steels like 50CrVA, the hanger can operate reliably in environments where the spring coil itself reaches approximately 150 °C to 200 °C. For spring temperatures up to 350 °C, we move to nickel-based alloys such as Inconel X-750. You do not need to specify the alloy yourself; share the expected spring exposure temperature and our engineers will select the correct material.

Can Tianshun build variable spring hangers for very large or very small loads?

Our standard range covers 0.5 kN to 250 kN. Loads outside this band are handled as custom engineering. Small instrument line supports and heavy riser hangers for main steam lines have been produced and tested in our facility.

What coating options exist for high-temperature or corrosive atmospheres?

Beyond hot dip galvanizing and high-temperature epoxy, we can apply thermally cured silicone-based coatings, halar, or fabricate the housing from stainless steel. If your site is coastal, offshore, or chemically aggressive, mention this during the enquiry and we will recommend a suitable protective system.

Do variable spring hangers come with installation instructions?

Yes. Every hanger ships with a brief installation guide that covers lifting, preset stop removal, and load verification. We also provide detailed instructions for commissioning so that the site team can confirm correct operation before handover.

What is a typical delivery time for a standard high-temperature variable spring hanger?

Standard models with commonly stocked spring materials can be manufactured, preset, and tested within four to six weeks. Custom alloys and larger load capacities may extend this, and we confirm the schedule at the time of quotation.

Working with Tianshun

When you contact us about a high-temperature variable spring hanger, a dedicated account manager with pipe support engineering knowledge handles your enquiry. We review your operating conditions, including temperature, travel, load, and the applicable design code, and return a technical recommendation within 24 hours. Custom spring materials, non-standard travels, specific end fittings, and project-specific documentation are treated as normal business, not special exceptions.

After delivery we remain available for installation support and maintenance guidance. More than 70% of our business comes from repeat orders, which we see as the strongest endorsement of our product performance over thousands of thermal cycles.

Yangzhou Tianshun Pipeline Technology Co., Ltd.

35,000 m² facility, Jiangsu, China – exporting to over 45 countries.

High-temperature variable spring hangers that keep the support reliable even when the pipe runs hot.
