Refinery Variable Spring Hanger

Unique Challenges for Refinery Pipeline Support

Compared with ordinary industrial pipelines, refinery pipeline systems face multiple harsh tests due to their complex and diverse working conditions:

▶  Wide temperature span: From normal temperature crude oil transmission to high-temperature steam and cracking gas pipelines above 450℃, with significant thermal displacement differences

▶  Complex corrosion environment: Multiple corrosion superposition including sour crude oil, acidic media, coastal salt spray and high-temperature oxidation

▶  Common vibration conditions: Continuous flow-induced vibration exists at pump outlets, compressor pipelines and after control valves

▶  High-risk media: Leakage of flammable, explosive and toxic media will lead to serious consequences

▶  Continuous operation requirements: Huge losses from unplanned shutdowns require extremely high support reliability

Targeting these unique working conditions of refineries, we have developed the Refinery Variable Spring Hanger, with multiple targeted optimizations based on the general type.

Product Technical Specifications

Product Positioning and Application Scenarios

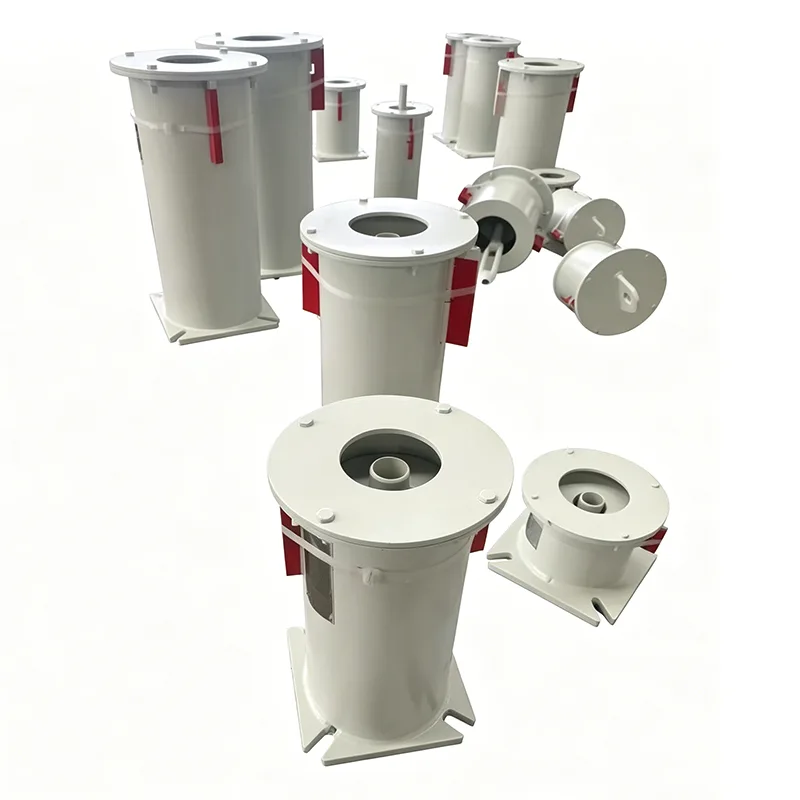

Refinery Variable Spring Hanger is a variable spring support device specially designed for refineries. It provides elastic support through pre-compressed cylindrical helical springs, and the supporting force adjusts linearly with the change of spring compression during pipeline thermal displacement.

Selection criteria (prioritize when meeting the following conditions):

▶  Pipeline vertical thermal displacement ≤ 50mm

▶  System allowable load change rate ≤ 25%

▶  Non-sensitive equipment connection (not directly connected to steam turbines, compressors, etc.)

▶  Pursue project cost optimization and balance performance and investment

In new refinery projects, about 80% of normal and medium temperature pipelines can adopt variable spring hangers. Compared with constant force solutions, it can significantly reduce procurement costs while fully meeting working condition requirements.

Selection Guide for Each Refinery Unit

5 Optimized Designs for Refinery Working Conditions

Dual Anti-Corrosion Treatment System

Shell sandblasted to Sa2.5 grade, with epoxy zinc-rich primer + polyurethane topcoat

Spring surface phosphating treatment + Dacromet coating to resist hydrogen sulfide corrosion

316 stainless steel shell customizable for coastal refineries to resist salt spray corrosion

Enhanced Anti-Vibration Structure

Rubber damping pads installed at upper and lower ends of springs to absorb pipeline vibration energy

Suspension rod adopts double nut anti-loosening structure to avoid vibration loosening

Guide sleeve installed inside the shell to prevent spring lateral offset

High Temperature Working Condition Adaptation

Thermal insulation pipe supports for pipelines above 150℃ to block heat conduction

High temperature resistant spring materials selected for pipelines above 250℃ to avoid stress relaxation

Spring working temperature upper limit marked to prevent over-temperature use

Convenient Installation and Maintenance Design

Pre-set according to cold load before delivery, direct on-site installation

Equipped with displacement indicator plate for convenient inspection of pipeline displacement during patrol

Modular spring assembly, can be replaced separately during maintenance without pipeline dismantling

Safety Redundancy Design

Load safety factor ≥1.5 times, reserved overload margin

Upper and lower stroke limits set to prevent spring over-compression or load loss

Suspension rod fracture safety factor ≥4 times to eliminate falling risk

Cost-Benefit Analysis: Variable Spring vs Constant Force

Take procurement of 100 spring hangers for a typical refinery as an example:

Conclusion: On the premise of meeting working condition requirements, Refinery Variable Spring Hanger can save more than 60% of the procurement cost of the support system for refinery projects, which is the most cost-effective choice.

Project Delivery Experience

Since its establishment in 2012, Yangzhou Tianshun Pipeline Technology has provided pipeline support products for multiple refinery projects worldwide:

▶  Domestic projects: Served new construction and renovation projects of multiple local refineries in Shandong, Jiangsu, Liaoning and other regions

▶  Overseas projects: Products exported to refinery projects in Brazil, Indonesia, South Africa and other countries

▶  Typical case: For a new 5 million tons/year refinery project, we supplied more than 1200 sets of variable spring hangers, all installed qualified at one time and have been operating without failure so far

▶  Quality record: No batch quality problem complaints for 8 consecutive years, customer repurchase rate exceeds 70%

Each batch of products is delivered with:

▶  Material certificate

▶  Spring load test report

▶  Product qualification certificate

▶  Installation and operation manual

Exclusive Services for Refinery Projects

▶  Selection support: Can directly read output files of pipeline stress analysis software to quickly complete batch selection

▶  Drawing confirmation: Provide product outline installation drawings to cooperate with pipeline layout design

▶  Split delivery: Deliver in batches according to unit construction progress to reduce on-site storage pressure

▶  On-site service: Technical personnel available for on-site installation guidance for major projects

▶  After-sales response: Provide solutions for product quality problems within 24 hours

▶  Spare parts supply: Common models in stock, emergency spare parts delivered within 48 hours
