Steam pipelines experience drastic temperature differences during startup and shutdown phases, and high-temperature media create significant thermal elongation displacement. Pipeline dead weight, media weight and fluctuating loads act simultaneously. Ordinary variable spring supports lack sufficient pressure-bearing and heat-resistant capacity; prolonged operation easily leads to spring relaxation, load deviation and housing deformation, which may result in pipeline joint tearing and unit load reduction or shutdown.

The Steam Pipe Variable Spring Support is custom-engineered for steam service, meeting demands for long-term continuous operation of steam pipelines in thermal power, district heating and petrochemical plants. Since our production launch in 2012, we have supplied over 400 sets of supports for large-scale steam projects, with the longest on-site service life reaching 13 years.

Product Technical Specifications

Structural Composition & Operating Principle

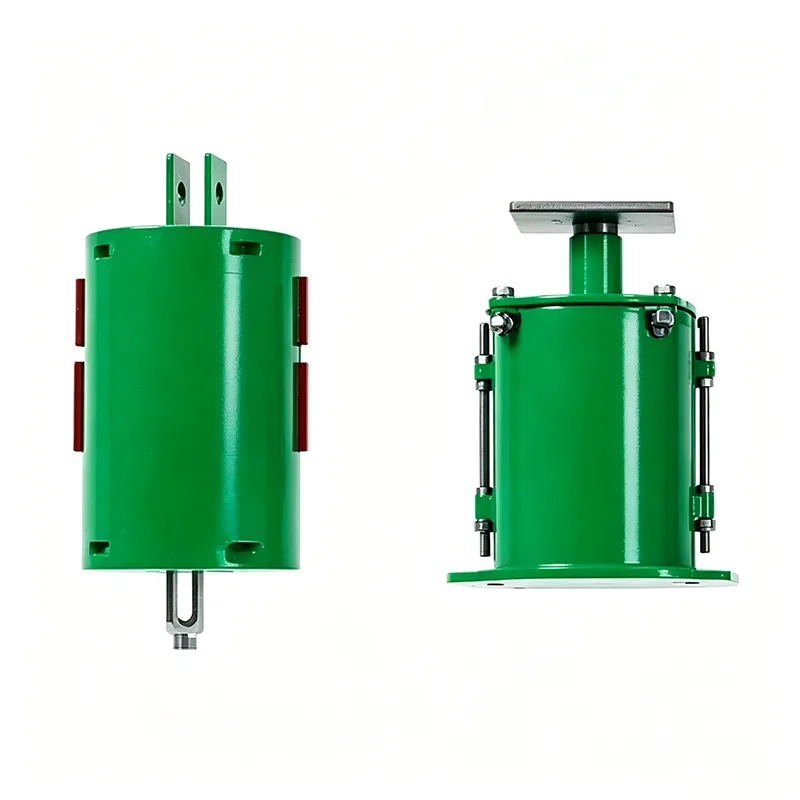

Steam Pipe Variable Spring Supports are available in two structural types: top suspended and bottom supported. They offset vertical pipeline thermal displacement via elastic spring deformation, delivering stably controlled load fluctuation within the deflection range.

All components are fabricated from materials suitable for high-temperature conditions:

1.High-temperature alloy compression springs

2.Thickened pressure-bearing housings

3.Heat-resistant adjusting screw rods

4.Metal displacement scale plates

5.High-strength forged lifting lugs and bases

6.Dual anti-loosening locking assemblies

The installation load is pre-calibrated at the factory. As pipelines expand with rising temperature, the springs expand and contract synchronously, evenly sustaining pipeline loads and lowering stress on weld seams and equipment nozzles.

Graded Material Matching Table

Three material configurations are classified by steam temperature to match actual operating conditions of Steam Pipe Variable Spring Supports:

All raw materials come with original mill MTC certificates from qualified steelworks. Every steel batch undergoes three re-inspections: spectroscopy, tensile testing and impact testing. Full documentation traceability is maintained to satisfy EEAT audit requirements.

Full Series Specification Table

Typical Application Scenarios

Steam Pipe Variable Spring Supports are primarily deployed on main steam lines:

▶  Main steam, reheat steam and feedwater pipelines in coal-fired and gas-fired thermal power plants

▶  High-temperature steam transmission lines for furnaces and cracking units in refineries

▶  Primary high-temperature steam networks for large urban district heating

▶  Steam generation pipelines in biomass and waste-to-energy power plants

▶  Heat exchange stations and steam distribution headers in chemical parks

Bulk supply records exist for benchmark domestic and international projects. We can provide past project contracts, on-site completion photos and owner acceptance documents to strengthen EEAT authoritative verification.

Standardized Production & Quality Control Workflow

Every Steam Pipe Variable Spring Support passes six closed-loop quality inspection steps with no skipped procedures:

1.Physical and chemical re-inspection of raw materials; full batch rejection for non-conforming stock

2.CNC spring coiling + multi-stage high-temperature stabilization heat treatment

3.Housing welding performed by certified welders; 100% penetrant testing on critical welds

4.Full-stroke load compression calibration for each finished unit

5.Coating thickness and adhesion testing for high-temperature paint systems

6.Final inspection of appearance, dimensions and marking before packaging; complete delivery document package supplied (material certificates, test reports, certificates of conformity)

The factory holds ISO 9001 quality system certification and CE pressure equipment certification; qualification documents are available for public verification.

Full-Support After-Sales Services

▶  Free pipeline stress calculation to accurately match the appropriate Steam Pipe Variable Spring Support model

▶  Custom fabrication for non-standard dimensions and special high-temperature conditions

▶  On-site engineer attendance to guide lifting, load commissioning and lock tab removal

▶  12-month full unit warranty; free replacement for load anomalies or component defects within warranty

▶  Long-term spare parts inventory and 24-hour online technical support

Supplementary FAQ

Q: Can this support be used long-term for superheated steam pipelines?

A: Select the Steam Pipe Variable Spring Support variant with Cr-V alloy springs and stainless steel clad plate housings. Testing confirms zero performance degradation under continuous 550℃ operation, and the product has seen long-term service in multiple 1,000 MW power generating units.

Q: What acceptance documents are delivered with each set?

A: Each unit set includes raw material mill test certificates, spring load test sheets, weld inspection reports and product certificates of conformity. Re-inspection by third-party organizations is supported.

Q: Can this product directly replace old-style spring supports during existing pipeline retrofits?

A: Dimensions follow unified national standard specifications; mounting lifting points and screw rod sizes are interchangeable. Direct replacement is feasible after verifying load and deflection parameters, without extensive civil foundation modification.
