Heavy-Duty Spring Supports For Industrial Pipeline Thermal Expansion And Load Bearing

We’ve been making spring supports at Tianshun for 14 years now. They’re not the flashiest part of a piping system, but when a thermal power plant starts up or an LNG line cools down, these are the components that quietly do the heavy lifting. Over 70% of our orders come from repeat customers — EPCs, engineering firms, and plant owners who’ve tried the rest and stick with us. Our spring supports are running in over 45 countries, from Middle Eastern refineries to Southeast Asian chemical plants.

When you’re specifying spring supports, the first real decision is between two types. If the pipe movement is moderate and some load variation is acceptable, then variable spring supports do the job well and keep costs down. If the connected equipment — like a steam turbine or a compressor nozzle — can’t tolerate much load change, you need constant spring supports. They maintain a nearly flat supporting force across the full travel range. Our engineers will help you pick the right type based on your stress analysis data, not guesswork.

How Spring Supports Work in a Real Piping System

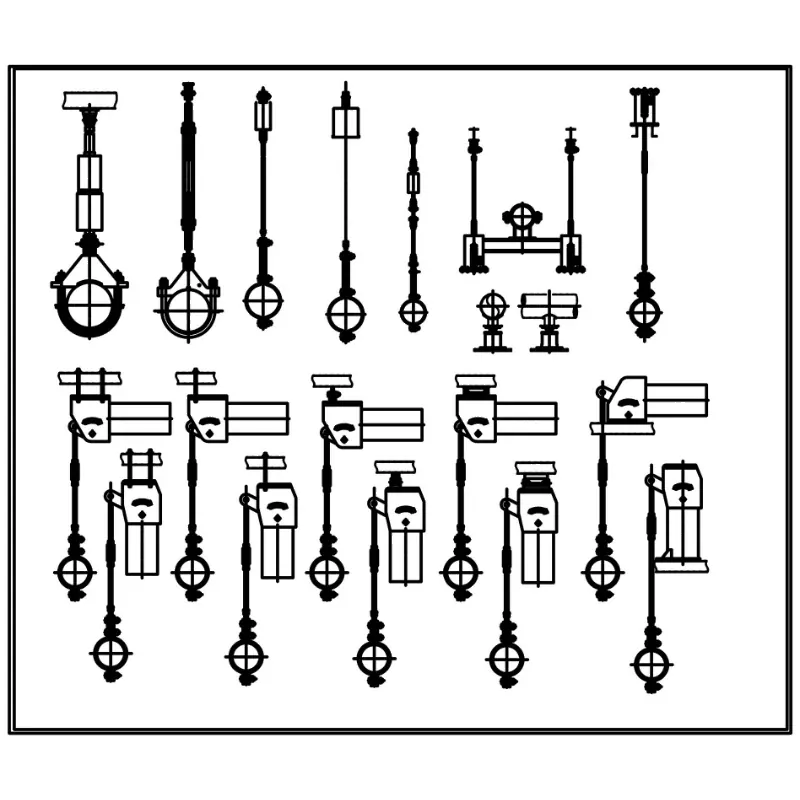

Spring supports don’t work in isolation. They’re almost always part of a bigger support arrangement. A typical setup includes rigid pipe supports or pipe shoes to carry the weight, while the spring unit handles the vertical thermal movement. When you need to support a cold line, we often combine the spring assembly with pre-insulated pipe supports to prevent condensation and ice buildup at the support point. Many clients also call these by a different name — spring hangers — especially when the unit is a top-mounted hanging type. Same product family, just a different mounting style.

Materials We Use

We don’t cut corners on raw materials. Every batch comes with mill certificates, and we’re happy to share full traceability with your inspection team.

All materials are sourced from approved Chinese steel mills. If your project requires a specific grade, such as duplex stainless or high-temperature alloys, just let us know.

Standards We Follow

We manufacture to the following standards as default, and can adapt to others on request:

ASME B31.3 – Process Piping

ANSI/MSS SP-58 – Pipe Supports and Hangers

GB/T 17116 – Chinese standard for pipe supports

Also available to DIN, JIS, or your project-specific specification

Our factory holds ISO 9001:2015 certification, and we produce full EN 10204 3.1 material certification with every shipment.

Common Questions Our Customers Ask

Q1: Variable or constant — how do I decide?

If your pipe displacement isn’t huge and a load variation of, say, 10-25% is okay, a variable spring support will work fine and cost less. When the attached equipment has a strict allowable nozzle load (typical on turbine inlets, compressor connections, or reactor piping), go with a constant spring support. Send us your stress isometrics or displacement data, and we’ll recommend the right model — no charge for that.

Q2: What load capacities and travel ranges can you supply?

For variable spring supports, our standard range covers a few hundred kilograms up to over 20 metric tons per unit. Constant spring supports can go well beyond 30 tons for heavy-walled lines. Travel: typically 0–150 mm for variable units, and up to 300 mm or more for constant types. Custom travel ranges and load settings are routine for us.

Q3: How long does delivery take?

Stock and semi-finished components: 20–25 days. Fully customized orders: 30–40 days. If your project is on a tight schedule, talk to our sales team early — we can often rearrange production slots to meet critical deadlines.

Q4: How do you pack these for export?

Smaller units go into fumigated wooden crates. Larger assemblies are bolted onto steel pallets or welded frames with waterproof wrapping. We ship regularly to ports in the Middle East, Southeast Asia, Europe, and South America. We haven’t had a single shipping damage claim in the last three years.

Q5: Can you show us project references?

Yes. We’ve supplied spring supports and complete pipe hanger packages for combined-cycle power plants in the Middle East, nickel processing facilities in Indonesia, chemical plants in Brazil, and conventional island piping in Chinese nuclear projects. Contact us for a reference list that matches your sector.

Testing Before Shipping

Every spring support that leaves our Yangzhou factory goes through these checks:

Visual and dimensional inspection

Spring free height and stiffness sampling

Full-load pre-compression and recovery test

Travel scale calibration

Load vs. displacement curve verification

We attach a test report and material certificates inside the shipment envelope. Third-party witness inspection by SGS, BV, or TÜV is available if your contract requires it.

Customization Is the Norm Here

Roughly half our orders start with a customer drawing or a set of design conditions, not a standard part number. To get a quotation, you only need to tell us:

Mounting type: top hanger or base support

Hot load and cold load

Expected pipe movement (up or down)

Connection details or your own drawing

Quantity

We’ll take care of the rest — special coatings, stainless hardware, high-temperature spring material, non-standard housing sizes, all of it.

The Way We See It

Spring supports aren’t rocket science, but they have to be done right. A well-built spring assembly will sit quietly for 15 or 20 years. A bad one shows up as a cracked weld or a sagging line within months. At Tianshun, we build these like we’re putting them into our own plant. That means no shortcuts on material, no skipping tests, and no last-minute surprises on delivery.

If your next project calls for spring supports, spring hangers, constant spring supports, or pre-insulated pipe shoes, send us your requirements. We’ll get you a fair factory price and a technical proposal that actually makes sense. You’re also welcome to visit our factory in Yangzhou — just let us know when.
