Article Summary:
A Constant Spring Hanger is an essential component for industrial piping systems where vertical movement, thermal expansion, and load stability are critical. In high-temperature industries such as power generation, petrochemical processing, and chemical manufacturing, pipelines continuously expand and contract during operation. Without a reliable support solution, excessive stress can transfer to equipment connections, resulting in vibration, deformation, leakage risks, and unexpected maintenance costs.
This article explains how Constant Spring Hanger systems work, why they are important, how they solve common pipeline support challenges, and what factors engineers should consider when selecting the right solution. With professional manufacturing experience, Tianshun provides customized constant spring support solutions designed for demanding industrial applications.
Industrial piping systems often face complex operating conditions. When pipelines transport steam, hot water, chemicals, or other high-temperature fluids, temperature changes create continuous expansion and contraction. These movements may appear small, but in large-scale facilities, even several hundred millimeters of vertical displacement can create significant mechanical stress.

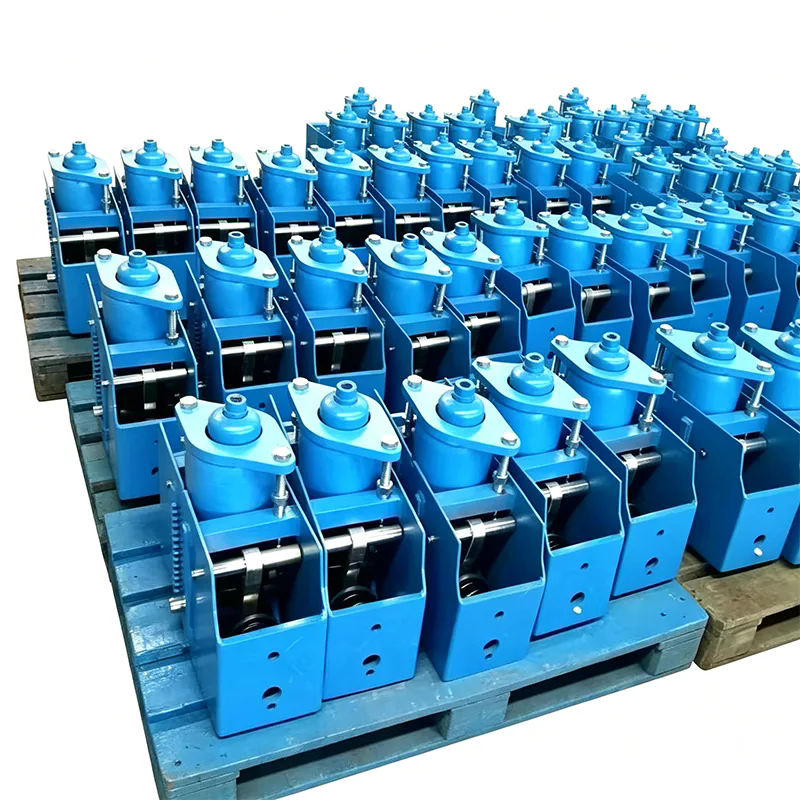

A Constant Spring Hanger is designed to support pipelines while allowing controlled vertical movement. Unlike rigid supports that restrict movement, this type of support maintains a nearly constant supporting force throughout its travel range. This characteristic helps protect connected equipment, improve system reliability, and reduce stress concentration.
In applications where pipeline movement is large and load variation must be minimized, constant spring hangers become a preferred engineering choice. They are widely used in power plants, refineries, chemical plants, and other facilities requiring stable and accurate pipe support performance.
The operating principle of a Constant Spring Hanger is based on a balanced mechanical design that converts spring force into a stable supporting force. The internal structure usually includes a high-strength spring coil, lever mechanism, load connection components, and protective housing.
When the supported pipe moves vertically because of thermal expansion or contraction, the internal spring mechanism changes position. Through carefully calculated lever ratios, the hanger compensates for spring force changes and maintains consistent load output.
| Component | Function |
|---|---|
| Spring Coil | Provides the elastic force required for supporting pipeline weight. |
| Lever Mechanism | Balances spring force and maintains constant load output. |
| Load Connection Assembly | Transfers supporting force between the hanger and pipeline. |
| Protective Housing | Protects internal components from environmental impact. |
The key advantage of this design is load stability. While a variable spring support changes its supporting force during movement, a Constant Spring Hanger is engineered to keep the supporting force almost unchanged. This makes it suitable for sensitive piping systems connected to expensive equipment.
Many industrial failures are not caused by pipeline materials themselves but by incorrect support systems. Selecting an unsuitable hanger can create uneven loading, excessive stress, and equipment reliability problems.
Constant Spring Hangers help solve several common engineering challenges:
Choosing the correct pipeline support system directly affects the safety, efficiency, and service life of industrial equipment. Compared with conventional rigid supports or variable spring hangers, Constant Spring Hangers provide several advantages that make them suitable for demanding operating environments.
| Advantage | How It Benefits Industrial Systems |
|---|---|
| Constant Load Support | Maintains stable supporting force during vertical displacement, reducing stress changes caused by pipeline movement. |
| Reduced Equipment Stress | Helps protect connected equipment by minimizing additional forces transferred through piping connections. |
| Improved System Reliability | Provides long-term support performance in high-temperature and high-pressure operating conditions. |
| Flexible Movement Capability | Allows pipelines to expand and contract naturally without restricting thermal movement. |
| Customized Engineering Options | Can be designed according to different load requirements, travel distances, and installation environments. |
One of the most important benefits of Constant Spring Hanger systems is their ability to maintain a stable load throughout the entire movement range. This is particularly valuable in power plants and process industries where even minor changes in support force may affect equipment alignment and operational safety.
For engineers, this means fewer concerns about unexpected pipeline stress, reduced risk of structural damage, and improved confidence in the overall piping system design.
Selecting a suitable Constant Spring Hanger requires careful consideration of several technical factors. A correct selection ensures that the support system performs effectively throughout the entire service life of the pipeline.
The following factors should be evaluated before choosing a hanger model:
| Selection Factor | Important Consideration |
|---|---|
| Load Capacity | Choose a model that matches the actual pipeline operating load instead of only considering static weight. |
| Travel Distance | Ensure the hanger allows sufficient movement caused by thermal expansion. |
| Material Quality | Select durable materials suitable for long-term industrial operation. |
| Installation Method | Confirm compatibility with existing steel structures and support locations. |
| Maintenance Requirements | Consider inspection accessibility and long-term service convenience. |
A professional manufacturer can help customers avoid incorrect selection problems by providing technical recommendations based on project requirements. Tianshun focuses on producing reliable Constant Spring Hanger solutions that meet different industrial application needs.
Constant Spring Hangers are widely used in industries where pipeline movement and load stability are critical. Their ability to maintain consistent support makes them an important part of modern industrial piping systems.
In these applications, improper pipeline support can lead to problems such as excessive vibration, pipe deformation, weld damage, and increased maintenance frequency. A properly designed Constant Spring Hanger system helps prevent these issues before they affect production.
Industrial customers require more than a standard support product. They need dependable engineering solutions that can handle different project conditions, operating environments, and performance requirements.
Tianshun specializes in providing professional Constant Spring Hanger products designed for industrial piping applications. By focusing on product reliability, structural performance, and practical engineering requirements, Tianshun helps customers achieve safer and more efficient pipeline systems.
The advantages of choosing Tianshun include:
For projects requiring dependable pipeline support, selecting a trustworthy manufacturer is an important step. Tianshun continues to improve product design and manufacturing standards to provide customers with effective Constant Spring Hanger solutions.
Q1: What is the main purpose of a Constant Spring Hanger?
A Constant Spring Hanger supports pipelines while allowing vertical movement caused by thermal expansion and contraction. Its main purpose is to maintain a nearly constant supporting force throughout the movement range.
Q2: What is the difference between a Constant Spring Hanger and a Variable Spring Hanger?
A Variable Spring Hanger changes its supporting force as the pipeline moves, while a Constant Spring Hanger is designed to maintain a stable load. Constant load support is preferred for systems where equipment stress control is important.
Q3: Where are Constant Spring Hangers commonly installed?
They are commonly used in power plants, petrochemical facilities, oil and gas projects, chemical factories, and other industrial environments with large thermal movements.
Q4: How can engineers determine the correct hanger size?
Engineers should consider pipeline weight, operating temperature, movement distance, installation conditions, and required load capacity. Professional technical assistance can help ensure accurate selection.
Q5: Why is pipeline support important in industrial systems?
Proper pipeline support helps control stress, reduce equipment loads, prevent deformation, and improve the reliability of the entire piping system.
A Constant Spring Hanger plays an important role in maintaining the safety and efficiency of industrial piping systems. By providing stable support during pipeline movement, it reduces stress concentration, protects connected equipment, and improves long-term operational reliability.
For industries dealing with high-temperature pipelines, complex layouts, and strict performance requirements, selecting the right support solution is essential. A well-designed constant spring support system can significantly reduce maintenance challenges and improve overall project performance.
Tianshun is committed to providing dependable Constant Spring Hanger solutions with professional manufacturing experience and customized engineering support. If you are looking for reliable pipeline support products for your industrial project, please contact us to discuss your requirements and receive professional assistance.
Contact Tianshun today for high-quality Constant Spring Hanger solutions and let our experienced team help you build a safer, more efficient, and more reliable piping support system. Please contact us for more information.
