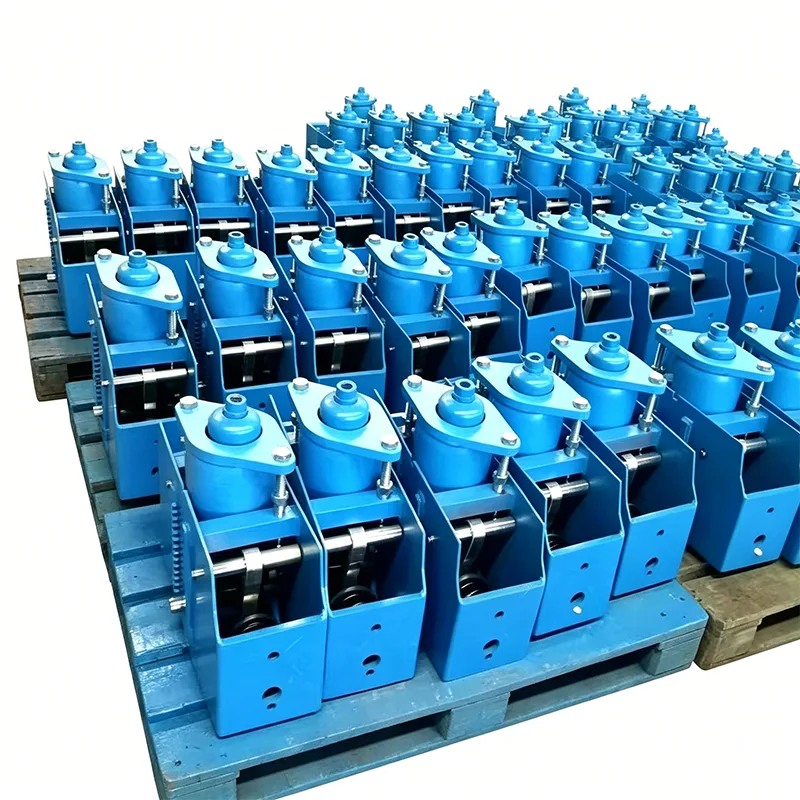

High Load Constant Spring Hanger

The High Load Constant Spring Hanger is a key component for controlling displacement and load in industrial pipeline systems. Under high-temperature and high-pressure working conditions, pipelines generate thermal expansion and contraction displacement due to temperature changes. If the supporting force changes with displacement, it will lead to pipeline stress concentration and threaten the safe operation of the system. Our High Load Constant Spring Hanger is designed based on the principle of moment equilibrium. It can continuously output stable supporting force throughout the entire stroke of pipeline vertical displacement, effectively avoiding damage to pipelines and connected equipment caused by additional stress.

Yangzhou Tianshun Pipeline Technology Co., Ltd., founded in 2012, has focused on the field of pipeline supports and hangers, accumulating 14 years of production and application experience. Our products have served key projects in power, petrochemical, energy and other industries in more than 40 countries around the world, and have won long-term repurchase trust from customers with stable quality.

Load‑displacement curve obtained from the type test of a constant spring support/hanger. The horizontal axis stands for displacement while the vertical axis represents load. The curve stays approximately horizontal across the full working travel, demonstrating that the supporting force remains essentially constant when piping deflects due to thermal expansion and contraction.

This type test verifies load constancy, full‑travel stability and operational reliability of constant spring units. All production units are subject to load calibration prior to shipment, with load deviation controlled within ±6% in accordance with ANSI/MSS‑SP‑58‑2018 and NB/T47038‑2013.

These products are applicable to industrial piping systems with large thermal displacement, including main‑steam pipelines and other high‑temperature & high‑pressure piping.

Core Working Principle

The High Load Constant Spring Hanger adopts a collaborative design of double-arm lever mechanism and spiral spring assembly, realizing constant force output based on the mechanical principle of moment equilibrium:

▶  Moment equilibrium mechanism: When the pipeline generates thermal displacement, the spring assembly transmits torque through the lever mechanism, keeping the load moment and spring moment always balanced

▶  Cam guide compensation: Built-in precision cam guide structure compensates for load fluctuations caused by mechanical friction and manufacturing deviations

▶  Stroke indicator device: Equipped with a visualized displacement indicator, which can observe pipeline displacement in real time, facilitating on-site installation and adjustment

Technical Parameters

Parameter Item	Technical Indicators	Execution Standard
Rated load range	0.5kN ~ 1000kN (super large load customizable)	GB/T 17116 / HG/T 20644
Working displacement range	±50mm ~ ±500mm	According to engineering design requirements
Load constancy	≤±5% (outperforming national standard requirement of ≤6%)	Factory inspection per unit
Working temperature range	-20℃ ~ 450℃ (customizable for high temperature conditions)	Material adaptive design
On-site load adjustment range	±10%	Equipped with special adjustment mechanism
Fatigue life	≥10,000 cycles	Simulated working condition test
Spring material	60Si2MnA high-strength spring steel	Vacuum heat treatment process

Core Product Features

1. Stable Load Constancy Performance

The load deviation of the High Load Constant Spring Hanger is controlled within ±5% throughout the full stroke, outperforming the national standard requirement. Through multi-disc spring combination and precision mechanical design, it ensures that the pipeline always obtains uniform support during thermal displacement, fundamentally eliminating the risk of stress concentration.

2. Strong Adaptability to Heavy Load Conditions

Optimally designed for high-load pipeline systems, the load-bearing frame adopts Q345B high-strength structural steel, and the spring cylinder is formed by integral spinning, eliminating hidden dangers of circumferential welds. The product can withstand a maximum load of 1000kN, meeting the support needs of heavy-load pipelines in large power stations, refining units and other facilities.

3. Convenient Installation and Maintenance

▶  Equipped with a load locking device to lock the spring during installation and transportation, preventing accidental displacement

▶  On-site load can be fine-tuned within ±10% to adapt to actual working condition deviations

▶  Standardized connection interfaces, compatible with various pipeline installation forms

▶  Modular structural design, convenient replacement of wearing parts

4. Full Working Condition Coverage

The product can adapt to the working temperature range of -20℃ to 450℃. For special working conditions such as low-temperature LNG and high-temperature steam, corresponding high-temperature or low-temperature resistant materials can be customized to ensure performance reliability in extreme environments.

Product Technical Specifications

Constant Spring Hanger Spec Table	Example
Model / Series	PH, LH, CA, CS, TH
Load Capacity (Operating)	0.1 kN - 500 kN
Total Travel	50mm, 100mm, 200mm, 400mm
Actual Travel	Up to 600mm
Load Deviation (Tolerance)	±5% (Standard) / ±3% (High Prec.)
Installation Position	Horizontal / Vertical
Housing Finish	Hot Dip Galvanized / Epoxy
Operating Temp.	-20°C to +80°C (Ambient)
Spring Coil Material	60Si2Mn / 50CrVA
Load Adjustment Range	±10% (Field Adjusting)

Production and Quality Control Assurance

We have a complete production and testing system to ensure the reliable performance of each High Load Constant Spring Hanger:

Every Product Is Fully Tested In-House Before Shipment

Before dispatch, each product goes through a complete in-house testing program. This program covers dimensional and visual inspection, PMI (Positive Material Identification), hardness testing, MT/PT non-destructive testing where applicable, spring load testing with load-displacement curves, and coating thickness measurement. Factory Test Reports (FTR) and Material Test Reports (MTR) are supplied with the shipment.

This In-House Testing Is Not ILAC-Accredited Third-Party Testing

If third-party witnessed testing or laboratory testing is required, it can be arranged separately as an optional service.

Optional Third-Party Inspection Services (Quoted Separately)

1. Material Testing

Chemical composition analysis, tensile testing, Charpy low-temperature impact testing, and hardness testing are available.

2. Weld NDT

Magnetic Particle Testing (MT), Liquid Penetrant Testing (PT), Ultrasonic Testing (UT), and Radiographic Testing (RT) can be provided.

3. Spring Load Performance Testing

Load-displacement curves are included.

4. Hot-Dip Galvanizing / Epoxy Coating Corrosion Protection Inspection

5. Witnessed Testing, Factory Surveillance, and Pre-Shipment Inspection (PSI)

What Makes Us Different

Benchmarked Against the LISEGA International Pipe Support System

For load accuracy, testing standards, and documentation systems, we use the LISEGA international pipe support system as our benchmark.

More Than a Standard Domestic Manufacturer

A standard domestic manufacturer typically supplies only the product. We go further by providing a load-displacement curve with every spring unit. We also help arrange third-party SGS testing and witnessed inspections, and we support document reviews by PE/CPE engineers for overseas projects.

Service & Support

▶  Pre-sales technical support: Professional sales team familiar with various working condition applications, can provide selection suggestions and technical solutions according to pipeline parameters

▶  Customized services: Support product customization for special loads, special displacements and special installation forms

▶  After-sales guarantee: Provide installation guidance and technical consultation, and respond promptly to product quality problems

▶  Delivery cycle: Conventional models are in stock, and customized products are delivered according to the agreed cycle
