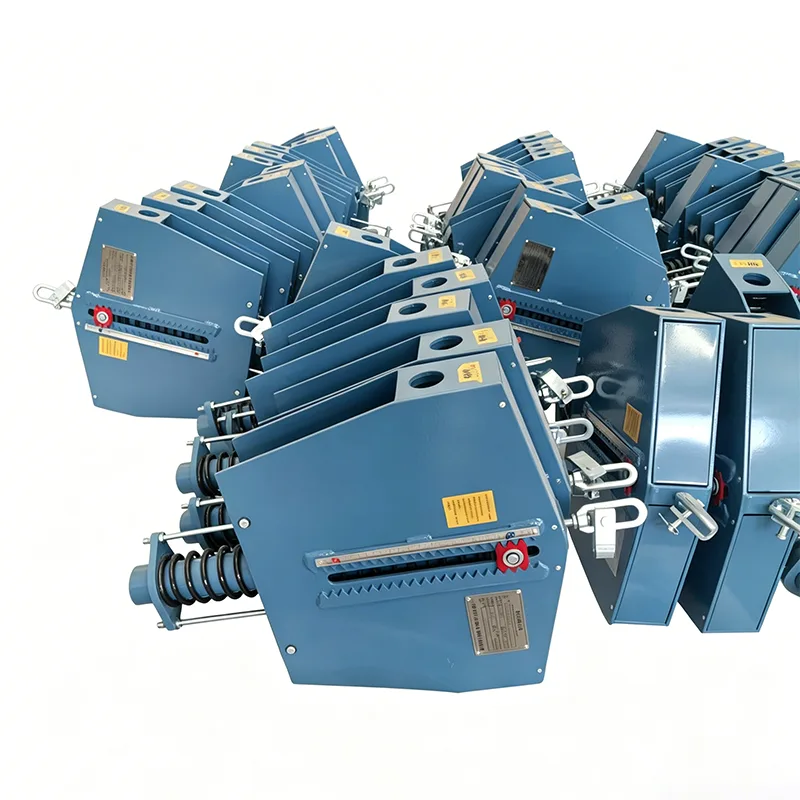

Heavy Duty Constant Spring Hanger

Yangzhou Tianshun Pipeline Technology Co., Ltd., founded in 2012, is an integrated industry and trade enterprise focusing on R&D and manufacturing of pipeline support products. Over the past 14 years, we have served power, petrochemical and energy projects in more than 40 countries around the world, and won long-term trust from customers with stable product quality. The Heavy Duty Constant Spring Hanger is our flagship product developed for large-load and high-requirement working conditions. It has been systematically strengthened in materials, structure and technology to provide reliable guarantee for the safe operation of pipelines under extreme working conditions.

What are Heavy Duty Working Conditions? Why Special Hangers are Needed

In large industrial projects, there is a special type of pipeline system:

▶  Large-diameter thick-walled pipelines: Above DN600, wall thickness over 20mm

▶  Heavy-weight pipeline systems: Load per lifting point over 200kN, some over 500kN

▶  High-temperature and high-pressure main pipelines: Power plant main steam, high-temperature process pipelines of refining units

▶  Long-span pipelines: Large-span pipe sections in pipe galleries with large concentrated loads

If ordinary constant force hangers are used for these heavy-duty pipelines, the following problems are very likely to occur:

▶  Shell deformation and cracking: Load exceeds structural bearing limit

▶  Insufficient spring stiffness: Excessive compression, loss of constant force characteristics

▶  Pin shear failure: Insufficient strength of connecting parts

▶  Suspension rod tensile deformation: Small diameter rod, overloading extension

The Heavy Duty Constant Spring Hanger is a reinforced product specially developed for such working conditions, with systematic strengthening from all dimensions of materials, structure and technology.

Heavy Duty Failure Cases and Lessons

According to industry statistics, heavy duty working conditions account for more than 60% of pipeline support failure accidents:

Case 1: Main steam pipeline of a power plant

Problem: Adopted ordinary constant force hanger, load per lifting point 280kNConsequence: Shell side plate cracked after 3 years of operation, pipeline sank 120mmLoss: 15 days of shutdown maintenance, direct loss over 10 million RMB

Case 2: High-temperature pipeline of a refining unit

Problem: Hanger pin diameter was too small, strength decreased at high temperatureConsequence: Pin shear fracture, pipeline fell, causing medium leakageLesson: Heavy duty hangers must be calculated for strength separately according to actual working conditions

Case 3: Cold box pipeline of an LNG terminal

Problem: Material embrittlement at low temperature, ordinary Q235 shell crackedConsequence: Pipeline displacement out of control, cold box interface flange leakageImprovement: Heavy duty hangers adopt low-temperature toughness materials

In 14 years of industry experience, Yangzhou Tianshun Pipeline Technology has handled many similar heavy duty support failure transformation projects, and deeply understands the particularity and risks of heavy duty working conditions.

Product Technical Specifications

Analysis of 7 Heavy Duty Reinforced Designs

High-Strength Structural System

Shell adopts Q345B low-alloy high-strength steel, yield strength increased by 40%

Side plate thickness increased by 50%, whole plate cutting without splicing welds

Bottom reinforcing rib plate design to disperse concentrated stress

Large-Diameter High-Strength Connection

Pin adopts 40Cr alloy structural steel, quenched and tempered, strength increased by 80%

Pin diameter designed with 5 times safety factor of maximum load

Self-lubricating bushing adopted to reduce friction and improve constancy

Multi-Spring Parallel Technology

2-4 sets of springs in parallel for large loads, single spring load controlled within reasonable range

Spring group synchronous compression design to avoid eccentric load

Each spring tested separately, matching deviation ≤2%

Reinforced Lever Mechanism

Lever arm cross-section enlarged, bending modulus increased by 100%

Thickened lining plate at fulcrum to prevent local crushing

Cam surface high-frequency quenched, hardness above HRC45, wear resistance life increased by 3 times

High-Precision Manufacturing Control

Key hole positions processed by CNC, position accuracy ±0.1mm

Lever moment ratio error controlled within ±1%

Spring compression accurately set, cold load deviation ≤3%

Perfect Weld Quality Control

Main load-bearing welds adopt full penetration welding process

100% ultrasonic testing, meeting JB/T 4730 Grade II requirements

Post-weld stress relief treatment to eliminate welding residual stress

Multiple Safety Protection

Upper and lower mechanical limits set to prevent over-stroke damage

Overload protection device, triggering warning under abnormal load

Displacement locking device to protect springs during installation and transportation

Load-Displacement Performance Comparison

The following are measured data (300kN load, 200mm displacement working condition):

The full stroke load deviation of Heavy Duty Constant Spring Hanger is controlled within ±4%, far better than national standard requirements, effectively protecting the safety of pipelines and equipment.

Our Heavy Duty Product Verification System

Each Heavy Duty Constant Spring Hanger must complete the following verification before delivery:

Incoming material inspection

Material certificate verification of steel plates and round bars

Spring steel hardness and composition re-inspection

Welding material compatibility verification

Production process inspection

CMM inspection of CNC machining dimensions

Weld UT testing

Spring group load-displacement curve test

Complete machine factory test

100% full stroke loading test, recording 20 measuring point data

Constancy calculation, rework for unqualified products

Locking device and limit device function test

Displacement indicator calibration

Factory documents

Material quality certification documents

Weld inspection report

Spring test report

Complete machine load-displacement test curve

Product qualification certificate and installation manual

Typical Heavy Duty Application Scenarios

Project Delivery and Service

Exclusive Service Process for Heavy Duty Projects

1.Technical docking: Professional engineers dock with pipeline stress analysts to confirm load, displacement and space requirements

2.Scheme design: Provide customized design schemes for special space constraints

3.Drawing confirmation: Provide detailed assembly drawings and load tables, signed and confirmed by both parties

4.Production tracking: Provide weekly production progress photos for major projects

5.Factory acceptance: Customers or third parties can be invited to witness tests at the factory

6.On-site service: Provide installation guidance, on-site technical support if necessary

7.Operation tracking: Return visit 6 months after commissioning to understand operation status

Performance and Commitment

▶  Delivered more than 500 sets of heavy duty constant force hangers, maximum single unit load 800kN

▶  All heavy duty products provide 3-year quality warranty

▶  Provide solutions for any quality problems during operation within 48 hours

▶  Lifetime technical consultation and spare parts supply

Heavy Duty Constant Spring Hanger is a reliable guarantee for the safe operation of heavy duty pipeline systems. With 14 years of focus, we deeply understand that heavy duty working conditions allow no mistakes. Each product has undergone strict testing to ensure stable operation under extreme working conditions.
