Modern industrial piping systems are designed to transport liquids, gases, steam, and chemicals under different operating conditions. However, pipes are constantly affected by external forces such as weight, thermal expansion, vibration, and mechanical stress. Without proper support solutions, these factors can cause pipe deformation, connection failure, leakage, and expensive downtime.
Pipe Shoes Support is a specialized component used to support elevated piping systems while maintaining proper positioning and allowing controlled movement. It creates a stable connection between the pipe and the supporting structure, helping distribute loads evenly and protecting the entire piping network.
In industries such as petrochemical, power generation, oil and gas, chemical processing, and manufacturing, selecting high-quality pipe support components is essential for long-term reliability. Tianshun focuses on providing durable Pipe Shoes Support solutions that meet different engineering requirements and operating environments.
Pipe Shoes Support functions by creating a stable supporting point underneath the pipe. Instead of allowing the pipe to directly contact structural beams or foundations, the pipe shoe provides a protective interface that transfers the load safely.
The working principle involves several key functions:
For high-temperature piping systems, thermal expansion can significantly affect pipe dimensions. A properly designed pipe shoe allows necessary movement while maintaining system stability.
A piping system without appropriate support may experience serious operational problems. Pipe Shoes Support helps engineers solve several common challenges:
| Common Challenge | Impact on Piping Systems | How Pipe Shoes Support Helps |
|---|---|---|
| Excessive Pipe Weight | Pipe sagging and structural overload | Provides stable load-bearing support |
| Thermal Expansion | Pipe movement and connection stress | Allows controlled expansion movement |
| Vibration | Fatigue damage and loose connections | Improves system stability |
| Metal-to-Metal Contact | Wear and corrosion problems | Creates a protective support layer |
The correct support design improves operational safety, reduces maintenance requirements, and extends the service life of piping equipment.
Different industrial environments require different pipe support designs. The selection depends on pipe size, temperature, load capacity, insulation requirements, and movement conditions.
| Type | Main Features | Typical Applications |
|---|---|---|
| Welded Pipe Shoe Support | Strong connection with high stability | Heavy industrial pipelines |
| Clamp-Type Pipe Shoe Support | Easy installation and maintenance | Systems requiring flexible replacement |
| Sliding Pipe Shoe Support | Allows horizontal pipe movement | High-temperature pipelines |

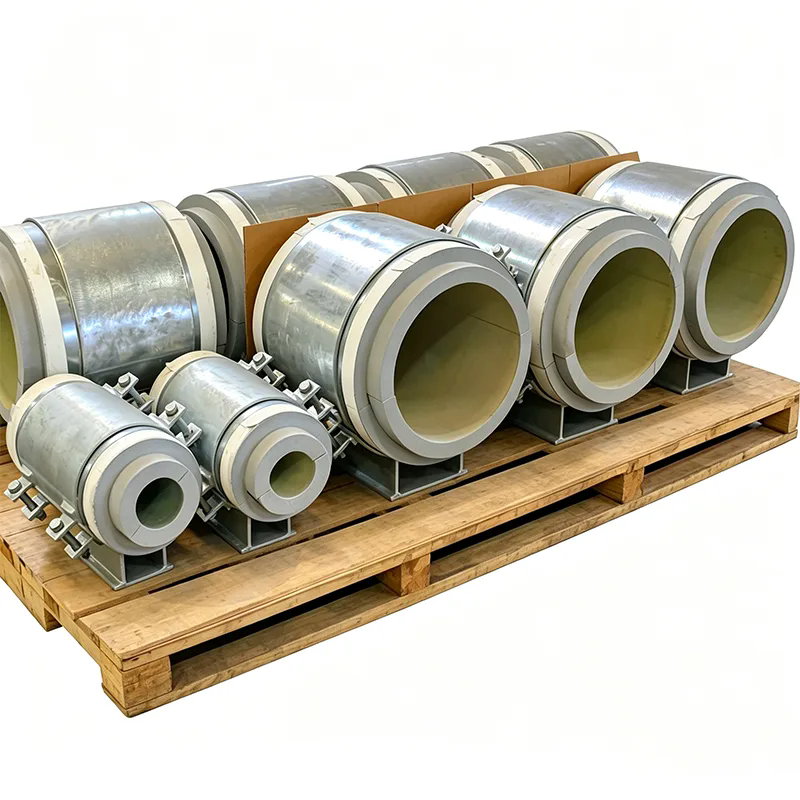

| Insulated Pipe Shoe Support | Reduces heat transfer and protects insulation | Steam and cold service systems |
Choosing the correct type ensures that the piping system can handle operational loads while maintaining safety and efficiency.
Selecting Pipe Shoes Support requires careful evaluation of engineering conditions. Incorrect selection may lead to premature failure or unnecessary costs.
Important factors include:
Tianshun provides Pipe Shoes Support solutions based on different project requirements, helping customers achieve reliable and efficient piping installations.
Pipe Shoes Support is widely used across many industries where piping reliability is critical.
Tianshun understands that every piping project has unique requirements. The company provides reliable support solutions designed for durability, stability, and long-term performance.
By focusing on product quality and practical engineering needs, Tianshun helps customers reduce risks and improve piping system performance.
Proper installation is essential for maximizing the performance of Pipe Shoes Support. Before installation, engineers should confirm pipe alignment, support location, load requirements, and movement direction.
Regular inspections should include:
A well-maintained support system helps prevent unexpected failures and improves overall operational safety.
The main purpose of Pipe Shoes Support is to provide stable support for piping systems while controlling movement, distributing loads, and protecting pipes from damage.
Yes. Specific designs can be used for high-temperature applications by selecting suitable materials and structures that accommodate thermal expansion.
By reducing pipe stress, preventing excessive movement, and protecting piping components, Pipe Shoes Support helps decrease failures and maintenance requirements.
Tianshun provides dependable Pipe Shoes Support products with attention to quality, engineering requirements, and customer application needs.
Pipe Shoes Support is a critical component for maintaining safe, stable, and efficient piping systems. By supporting heavy loads, managing thermal movement, and reducing operational stress, it helps extend the lifespan of industrial pipelines.
For companies seeking reliable piping support solutions, Tianshun offers professional Pipe Shoes Support products designed to meet different industrial requirements. Whether you need standard solutions or customized support designs, Tianshun is ready to provide dependable assistance. Contact us today to discuss your Pipe Shoes Support requirements and find the right solution for your project.
