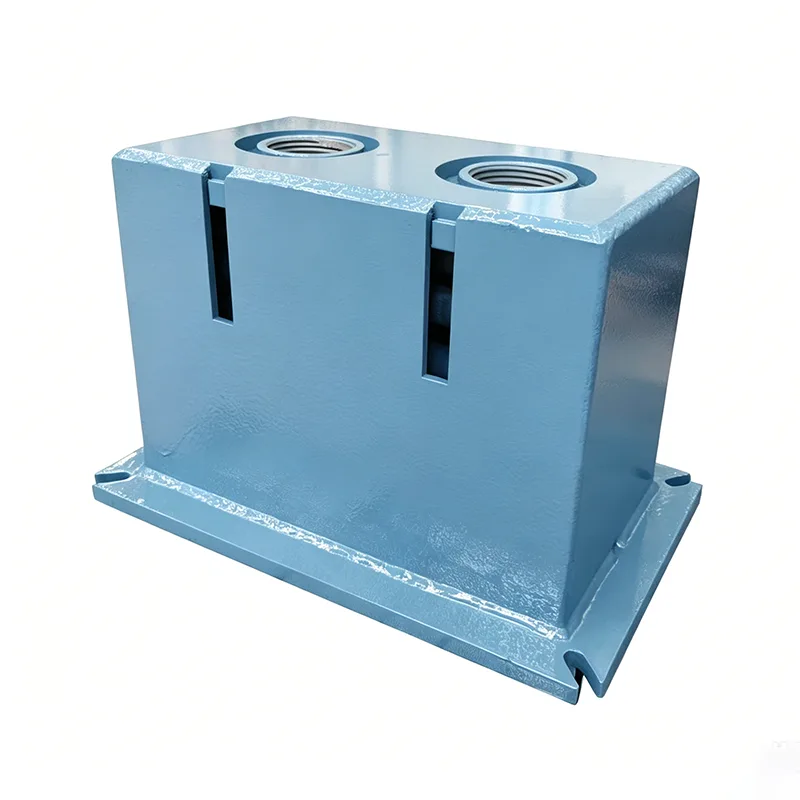

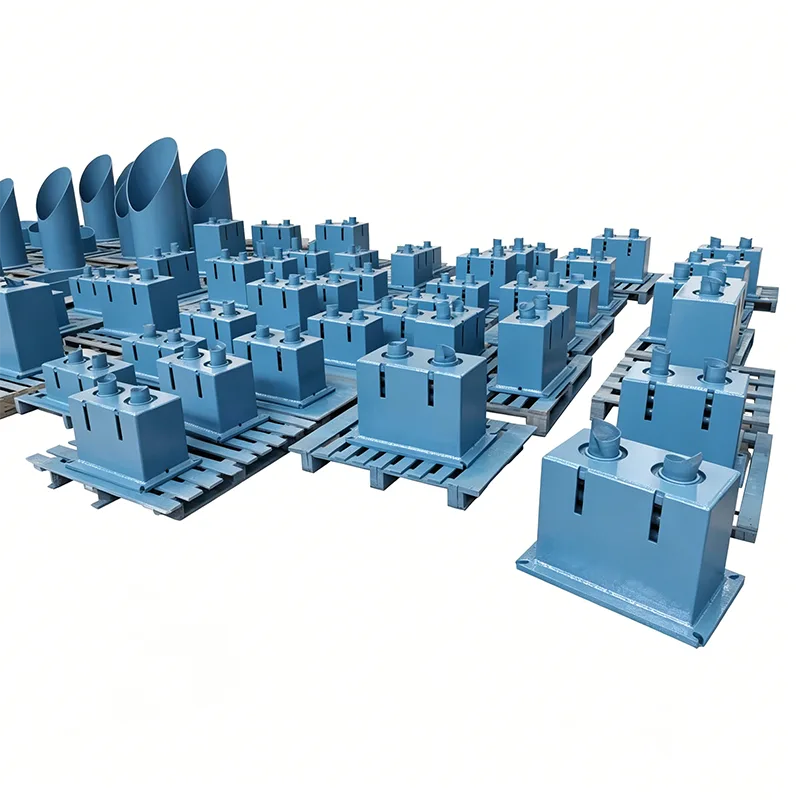

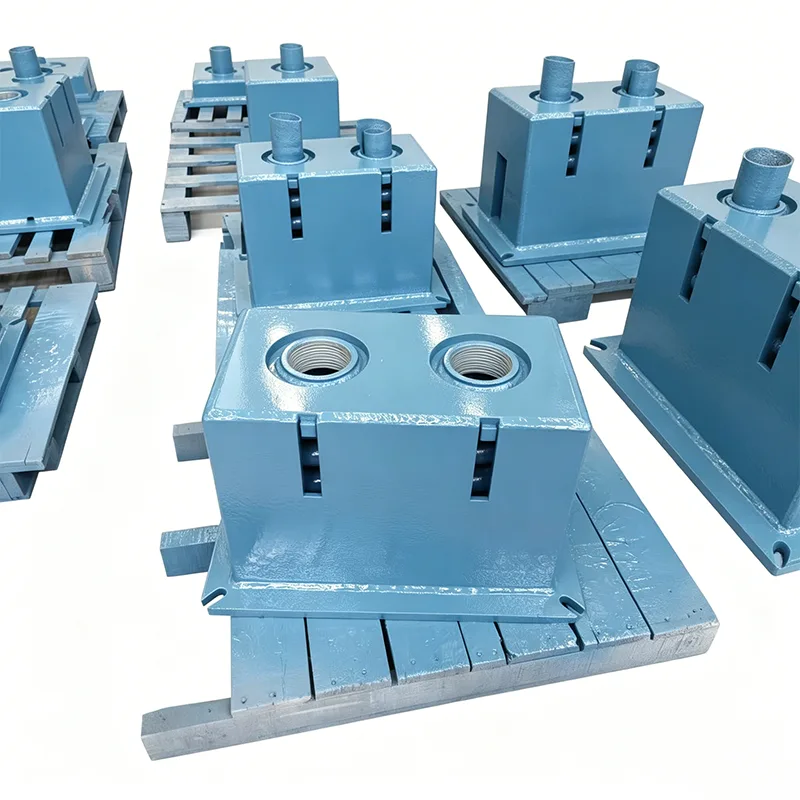

Big Ton Spring Supports

Founded in 2012, Yangzhou Tianshun Pipeline Technology Co., Ltd. has extensive R&D and manufacturing expertise in heavy-duty pipeline support solutions. Our Big Ton Spring Supports are a customized product line developed for ultra-high load conditions, breaking the load limit of conventional spring hangers. Designed exclusively for extreme scenarios with single lifting points exceeding 100 tons, they have been successfully deployed in multiple national-level key energy projects.

What Are Heavy-Duty Working Conditions? Industry Pain Points

In large-scale energy and petrochemical projects, pipelines with extreme loads include:

Ultra-large diameter thick-walled pipelines: DN1200+, wall thickness ≥50mm, weight per meter over 5 tons

Large equipment connection pipelines: Inlet/outlet of reactors, heating furnaces, steam turbines, single lifting point load over 100 tons

Long-span pipe rack mains: Span ≥30 meters, with massive concentrated loads

Special alloy pipelines: Duplex steel, nickel-based alloy pipelines, far heavier than carbon steel due to high material density

Limitations of conventional products:

Maximum load of standard spring hangers typically does not exceed 40 tons

Ordinary structures deform and lose stability above 80 tons

Multi-group parallel connection fails to ensure synchronization, causing eccentric loading

Very few domestic manufacturers can reliably produce 100-ton+ supports

Big Ton Spring Supports are purpose-built to solve this industry-wide challenge.

Product Technical Specifications

Core Technological Breakthroughs

Multi-Spring Synchronous Parallel Technology

Centrally symmetrical arrangement for even force distribution across 4–8 spring groups

Individual spring testing/matching, stiffness deviation ≤2%

Patented load-balancing mechanism guarantees 100% synchronous compression

Eliminates eccentric loading in multi-spring parallel systems

Ultra-High Strength Structural System

Q460C high-strength steel, 80% higher yield strength than standard materials

Integral box-type structure, 3x higher bending/torsional stiffness than conventional designs

Finite element optimization eliminates stress concentration points

Structural deformation ≤0.5mm under full load

Large-Diameter Heavy-Duty Connection Technology

42CrMo alloy steel pin shafts (quenched & tempered)

Max pin diameter 150mm, single-shaft load capacity over 300 tons

Self-lubricating copper alloy bushings, friction coefficient ≤0.08

Minimizes friction impact, significantly improves load constancy

High-Precision Manufacturing Process

CNC flame + plasma composite cutting for load-bearing plates

CNC boring for key holes, position accuracy ±0.05mm

Post-weld stress relief treatment eliminates residual stress

One-clamp machining on large CNC gantry centers

Multi-Layer Safety Protection

Dual protection: mechanical limit + hydraulic buffering

Overload alarm triggers at 110% rated load

Redundant design: safe operation even if one spring group fails

Anti-overturning structure ensures stability under lateral forces

Dedicated Test & Verification System

300-ton dedicated load tester for 100% full-load validation

Full-stroke continuous data acquisition (10 readings per second)

Real-time constancy calculation – unqualified units never ship

Simulated fatigue testing verifies long-term reliability

Factory Test & Validation Protocol

Every Big Ton Spring Support undergoes mandatory testing before delivery:

Incoming Material Inspection

Spectral analysis for high-strength steel composition

Spring steel hardness & metallographic testing

Ultrasonic flaw detection for internal defects

Mechanical property tensile testing

In-Process Quality Control

3-coordinate dimensional inspection for CNC parts

100% UT ultrasonic weld flaw detection

100% MT magnetic particle weld inspection

Spring group load-displacement curve matching

Full-Load Final Test (Core Step)

300-ton tester step loading: 0→50%→100%→120%

Full-stroke testing with 50+ measurement points

Load constancy verification (must be ≤±3%)

Structural deformation check (must be ≤0.5mm)

Synchronization accuracy validation (≤2% group deviation)

Delivery Documentation

Full material quality certificates

Weld flaw detection reports

Spring matching test reports

Full-load test curve reports

Finite element analysis reports

Product qualification certificate

Typical Application Cases

Case 1: 20 Million Tons/Year Refining & Chemical Integration Project

Product: 150-ton Big Ton constant force spring support

Application: Hydrogenation reactor outlet pipeline

Conditions: 150-ton load, 250mm displacement, 420℃ high temperature

Result: 3 years of stable operation, constancy maintained within ±2.5%

Case 2: Ultra-Supercritical 1000MW Power Unit

Product: 120-ton heavy-duty constant force hanger

Application: Main steam pipeline

Conditions: 120-ton load, 300mm displacement

Result: Passed power plant acceptance on first trial, zero operational issues

Case 3: LNG Terminal Project

Product: 80-ton low-temperature heavy-duty support

Application: Cold box main pipeline

Conditions: -162℃ cryogenic environment, 80-ton load

Result: Correct low-temperature material selection, no embrittlement issues

Custom Project Service Process

Pre-Project Technical Consultation

Dedicated engineer to collect detailed working condition parameters

Preliminary design with load-displacement matching calculation

Finite element structural strength/stiffness verification

Technical proposal + quotation delivery

Design Confirmation

Detailed engineering drawings (outline, load tables)

Bilateral confirmation of key technical parameters

Inspection & Test Plan (ITP) development

Production kickoff after signed approval

Production Progress Tracking

Weekly production photo updates

Customer witness opportunities for key milestones

Third-party inspection support throughout

Real-time technical clarification response

Factory Acceptance

On-site full-load test witnessing available

Real-time test data display

Complete documentation handover

Professional packaging & shipping

On-Site Support

Technical staff for installation guidance

Commissioning & load calibration assistance

Post-commissioning follow-up visits

Lifetime technical support

Big Ton Spring Supports set the technical benchmark for heavy-duty pipeline support. We push industry limits, delivering reliable ultra-high load solutions for your critical engineering projects through rigorous testing and proven project experience.
