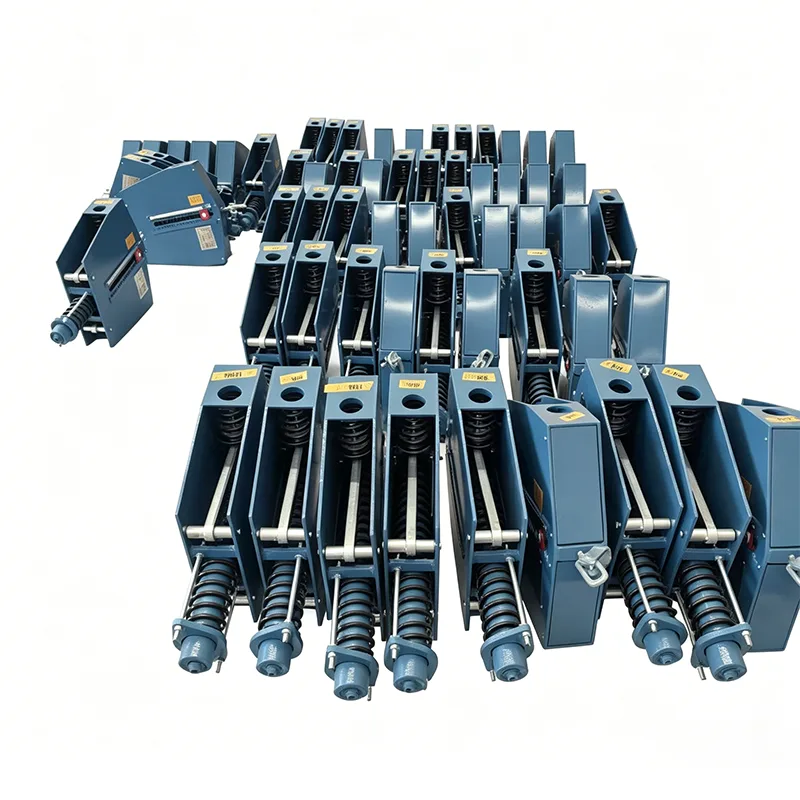

Vertical Constant Spring Support

When pipelines experience large vertical displacements (exceeding 100mm) and are extremely sensitive to load variations, the load variation rate (≤25%) of ordinary variable spring supports can lead to excessive pipeline stress, equipment interface damage and even pipeline rupture. The Vertical Constant Spring Support provides nearly constant supporting force (load variation rate ≤5%) throughout the entire working stroke based on the moment balance principle, completely solving the stress control challenge for large-displacement pipelines.

Load‑displacement curve obtained from the type test of a constant spring support/hanger. The horizontal axis stands for displacement while the vertical axis represents load. The curve stays approximately horizontal across the full working travel, demonstrating that the supporting force remains essentially constant when piping deflects due to thermal expansion and contraction.

This type test verifies load constancy, full‑travel stability and operational reliability of constant spring units. All production units are subject to load calibration prior to shipment, with load deviation controlled within ±6% in accordance with ANSI/MSS‑SP‑58‑2018 and NB/T47038‑2013.

These products are applicable to industrial piping systems with large thermal displacement, including main‑steam pipelines and other high‑temperature & high‑pressure piping.

Working Principle

The vertical constant spring support utilizes the mutual balance between spring force and the moment generated by the linkage mechanism. As the pipeline moves up and down, the spring deformation is precisely compensated by the cam and linkage system, keeping the output supporting force stable. This design completely eliminates load fluctuations caused by pipeline displacement, protecting pipelines and connected equipment from additional stress.

Product Technical Specifications

Constant Spring Hanger Spec Table	Example
Model / Series	PH, LH, CA, CS, TH
Load Capacity (Operating)	0.1 kN - 500 kN
Total Travel	50mm, 100mm, 200mm, 400mm
Actual Travel	Up to 600mm
Load Deviation (Tolerance)	±5% (Standard) / ±3% (High Prec.)
Installation Position	Horizontal / Vertical
Housing Finish	Hot Dip Galvanized / Epoxy
Operating Temp.	-20°C to +80°C (Ambient)
Spring Coil Material	60Si2Mn / 50CrVA
Load Adjustment Range	±10% (Field Adjusting)

Product Structure Breakdown

The standard Vertical Constant Spring Support adopts a modular design, consisting of the following independent components for easy on-site maintenance and replacement:

▶  Spring Assembly: High-strength alloy springs subjected to stabilization heat treatment

▶  Moment Balance Mechanism: Precision-machined cam and linkage system

▶  Load Adjustment Device: Top bolt adjustment for fine tuning during operation

▶  Displacement Indication System: Clear scale plate showing real-time pipeline displacement

▶  Upper and Lower Connection Assemblies: Multiple connection options to adapt to different installation conditions

▶  Protective Housing: Fully enclosed design to prevent dust and corrosive media ingress

Core Differentiated Advantages

Advantage Item	Specific Performance	Value to Customers
Constant Force Accuracy	Load variation rate ≤5%, exceeding national standards	Reduces pipeline stress and extends equipment service life
Compact Structure	30% smaller than traditional horizontal constant spring supports	Saves pipe rack space and facilitates installation
Easy Installation	Pre-adjusted to specified load before delivery	Eliminates complex on-site debugging and shortens construction period
Simple Maintenance	Modular design with interchangeable components	Reduces downtime and lowers maintenance costs
Safe and Reliable	Equipped with overload and stroke limit devices	Prevents accidental damage and ensures system safety

Standard Specification Selection Table

Model Series	Load Range (kN)	Rated Deflection (mm)	Operating Temperature (℃)	Applicable Standards
VCH-50	0.5-20	50	-40~+450	GB/T 17116.2
VCH-100	2-50	100	-40~+450	GB/T 17116.2
VCH-150	5-100	150	-40~+450	GB/T 17116.2
VCH-200	10-200	200	-40~+550	GB/T 17116.2
VCH-300	20-300	300	-40~+550	GB/T 17116.2
VCH-400	50-500	400	-196~+550	ANSI/ASME B31.1

Applicable Installation Scenarios

The Vertical Constant Spring Support is particularly suitable for the following pipeline systems requiring vertical installation and large displacement:

▶  Main steam pipelines and reheat steam pipelines in power plants

▶  High-temperature and high-pressure process pipelines in petroleum refining and chemical plants

▶  Cryogenic liquid pipelines in LNG terminals

▶  Blast furnace gas and oxygen pipelines in steel plants

▶  High-temperature steam main lines for urban central heating

▶  Inlet and outlet connecting pipelines of large storage tanks

Installation and Maintenance Guidelines

▶  Pre-Installation Inspection: Verify that the product model, load and deflection meet design requirements, and check for any damage during transportation

▶  Installation Precautions: Keep the support vertical with a deviation not exceeding 1°; remove the transport locking device after installation

▶  Pre-Operation Commissioning: Fine-tune the load according to actual on-site conditions to ensure the pipeline is level

▶  Daily Maintenance: Check the displacement indicator and connection bolt tightness every six months; conduct a comprehensive inspection annually

▶  Replacement Cycle: The product service life can reach 15-20 years under normal working conditions

Project Verification and Quality Control

Our Vertical Constant Spring Supports have been verified in numerous key projects worldwide, including:

▶  Main steam pipeline system of a 300MW thermal power plant

▶  A 10 million tons per year refining and chemical integration project

▶  Cryogenic pipeline project of an LNG terminal

Comprehensive In-House Testing Is Performed on Every Product Before Shipment

Before shipment, each product goes through a complete in-house testing process. This process includes dimensional and visual inspection, PMI (Positive Material Identification), hardness testing, MT/PT non-destructive testing where applicable, spring load testing with load-displacement curves, and coating thickness measurement. Factory Test Reports (FTR) and Material Test Reports (MTR) are supplied.

Clarification on Third-Party Accreditation

In-house testing is not the same as third-party testing accredited by ILAC. If third-party witnessed testing or laboratory testing is required, it can be provided as a separate optional service.

Optional Third-Party Inspection Services (Quoted Separately)

1. Material Testing

This service covers chemical composition analysis, tensile testing, Charpy low-temperature impact testing, and hardness testing.

2. Weld NDT

Available methods include Magnetic Particle Testing (MT), Liquid Penetrant Testing (PT), Ultrasonic Testing (UT), and Radiographic Testing (RT).

3. Spring Load Performance Testing

Load-displacement curves are included.

4. Hot-Dip Galvanizing / Epoxy Coating Corrosion Protection Inspection

5. Witnessed Testing, Factory Surveillance, and Pre-Shipment Inspection (PSI)

Our Distinguishing Advantages

Benchmarked Against the LISEGA International Pipe Support System

Our product load accuracy, testing standards, and documentation systems are benchmarked against the LISEGA international pipe support system.

More Than a Standard Domestic Supplier

Unlike standard domestic manufacturers that provide only the product itself, we supply a load-displacement curve with every spring unit. We also help arrange third-party SGS testing and witnessed inspections, and we support document reviews by PE/CPE engineers for overseas projects.

Supporting Services

▶  Free technical selection and pipeline stress analysis

▶  Customized design services for non-standard products

▶  On-site installation guidance and technical training

▶  12-month warranty period with lifetime technical support

▶  Emergency spare parts supply with 48-hour response

For more detailed information about the Vertical Constant Spring Support, please contact our technical team for professional selection advice.

Frequently Asked Questions (FAQ)

Q: What is the difference between vertical and horizontal constant spring supports?

A: The main differences lie in installation method and space occupation. Vertical constant spring supports are installed vertically and occupy less horizontal space, making them suitable for narrow pipe rack areas. Horizontal constant spring supports are installed horizontally and occupy more vertical space, suitable for locations with sufficient headroom.

Q: Can your Vertical Constant Spring Support have its load adjusted on-site?

A: Yes. The product is equipped with a dedicated load adjustment bolt at the top, allowing fine tuning during pipeline operation without shutdown. The adjustment range is ±10% of the rated load.

Q: Is this product suitable for low-temperature environments?

A: Yes. We offer special low-temperature models that adopt cryogenic-resistant materials and special treatment processes. They can operate normally at temperatures as low as -196℃ and are suitable for cryogenic pipeline systems such as LNG.
