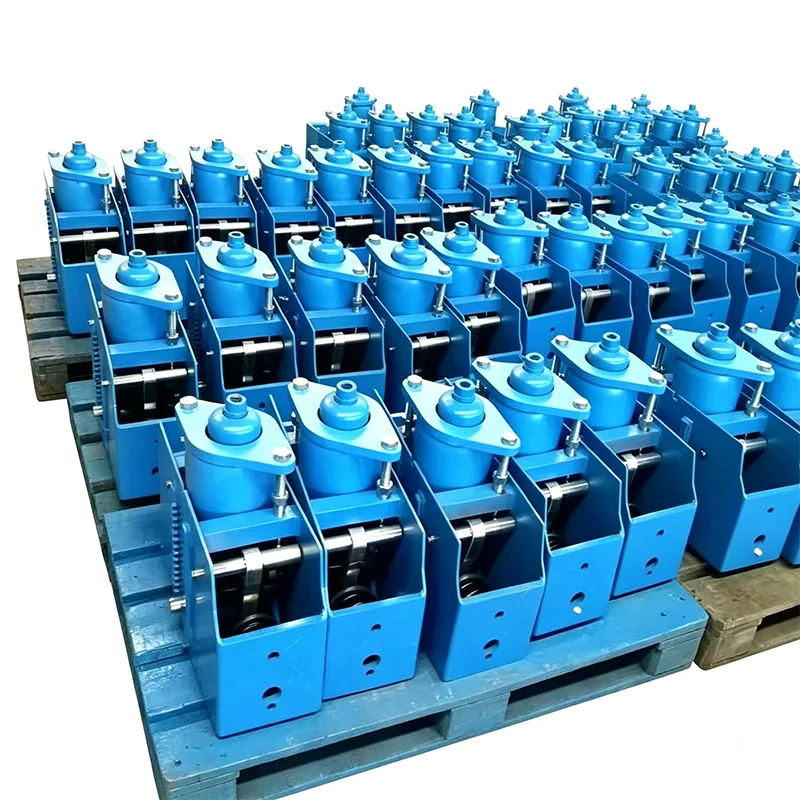

Horizontal Constant Spring Support

In many industrial sites, limited space above pipelines makes it impossible to install vertical constant spring supports. Meanwhile, some pipelines require support from the side or below, and traditional support methods struggle to meet constant force requirements under large displacements. The Horizontal Constant Spring Support is a dedicated product designed specifically to solve these problems. It is installed horizontally below or beside pipelines, providing stable supporting force throughout the entire working stroke with a load variation rate controlled within 5%.

Working Principle and Structural Features

The horizontal constant spring support operates based on the moment balance principle. When the pipeline undergoes vertical displacement, the elastic force of the spring is converted into a constant output force through a precision linkage and cam mechanism. Unlike vertical supports, its spring assembly is arranged horizontally, resulting in a lower center of gravity and more stable operation, making it particularly suitable for large-load and large-displacement pipeline systems.

The standard Horizontal Constant Spring Support adopts an integrated welded frame structure, with main components including:

▶  Horizontally arranged cylindrical helical spring assembly

▶  High-precision moment balance linkage system

▶  Side-mounted load adjustment mechanism

▶  Dual-stroke limit device

▶  Visual displacement indicator

▶  Bottom mounting base

Product Technical Specifications

Comparison with Vertical Constant Spring Supports

Full Series Specification Parameters

We provide 6 standard series of Horizontal Constant Spring Supports, covering the vast majority of industrial application requirements:

All products comply with GB/T 17116.2-2018, ANSI/ASME B31.1 and DIN 2545 standards.

Core Performance Advantages

▶  Ultra-High Load Capacity: Delivers a maximum supporting force of 1000kN to meet the requirements of large pipelines and equipment

▶  High Operational Stability: Horizontal arrangement with low center of gravity provides excellent seismic performance, capable of withstanding magnitude 8 earthquakes

▶  Safe and Convenient Maintenance: Side adjustment and inspection eliminate the need for climbing work, reducing safety risks

▶  Strong Installation Adaptability: Can be installed on concrete beams, steel structures or equipment foundations

▶  Wide Load Adjustment Range: Allows on-site adjustment within ±15% of the rated load

▶  Fully Sealed Design: Effectively prevents dust, rainwater and corrosive media from entering internal mechanisms

Typical Application Fields

Horizontal Constant Spring Supports are widely used in the following industrial scenarios:

▶  Main steam and reheat steam pipelines in large thermal power plants

▶  Hydrocracking and fluid catalytic cracking unit pipelines in petroleum refineries

▶  Storage tank inlet and outlet pipelines in large LNG terminals

▶  Blast furnace hot air pipelines and converter gas pipelines in steel plants

▶  Conventional island steam pipeline systems in nuclear power plants

▶  Large-diameter high-temperature hot water pipelines for urban central heating

Manufacturing and Quality Assurance

With 14 years of experience in manufacturing constant spring supports, Yangzhou Tianshun Pipeline has successfully applied its Horizontal Constant Spring Supports to more than 350 industrial projects worldwide. All products undergo strict quality control procedures:

▶  Raw Material Control: All spring steel is sourced from Baosteel and Angang, with each batch subjected to spectral analysis and mechanical property testing

▶  Precision Machining: Key components are manufactured using CNC machining centers, achieving IT7 grade dimensional accuracy

▶  Spring Testing: Each spring undergoes 3 full compression tests and 100,000 fatigue cycles

▶  Complete Machine Commissioning: Each unit undergoes full-stroke constant force performance testing before shipment to ensure load variation rate ≤5%

▶  Third-Party Inspection: Inspection reports from internationally authoritative institutions such as SGS, BV and TUV can be provided

Our quality management system is certified to ISO 9001:2015, and our products have obtained CE and API certifications.

Exclusive Service Support

▶  Free on-site survey and pipeline stress analysis

▶  Customized design for special installation spaces

▶  Professional engineers provide on-site installation guidance and commissioning

▶  12-month warranty period with free repair or replacement during the warranty period

▶  Lifetime technical support and spare parts supply

For more detailed information about the Horizontal Constant Spring Support or technical selection for your project, please contact our sales team.

Frequently Asked Questions (FAQ)

Q: Can horizontal constant spring supports be installed on steel structures?

A: Yes. We provide multiple mounting base forms to adapt to concrete foundations, steel structure beams and equipment platforms. For large-load models, we will provide foundation design recommendations to ensure installation strength meets requirements.

Q: Can your Horizontal Constant Spring Support be used in low-temperature environments?

A: Yes. We offer special low-temperature models that adopt 304 or 316L stainless steel materials and have passed low-temperature impact tests. They can operate normally at temperatures as low as -196℃ and are suitable for cryogenic pipeline systems such as LNG and ethylene.

Q: What is the delivery time for your products?

A: The delivery time for standard models is 30-45 days, and for customized models it is 45-60 days depending on complexity. For urgent orders, we can arrange expedited production with the shortest delivery time of 20 days.
