Cantilever Constant Spring Support

In large industrial pipeline systems, when pipelines undergo significant vertical displacement, ordinary spring supports will produce noticeable load variations, which in turn exert enormous additional stress on connected sensitive equipment (such as steam turbines, boilers, compressors, etc.). Leveraging 14 years of technical accumulation in pipeline support technology, Yangzhou Tianshun Pipeline Technology Co., Ltd. professionally develops and manufactures Cantilever Constant Spring Support. This product adopts the principle of moment equilibrium to ensure that the supporting force remains constant throughout the vertical displacement of the pipeline. This feature makes it a critical supporting device for large-displacement pipeline systems and scenarios where load change rate must be strictly controlled. It effectively avoids unfavorable force transfer in the pipeline system and ensures the safe operation of core equipment.

Product Technical Specifications

Core Structure and Mechanical Properties

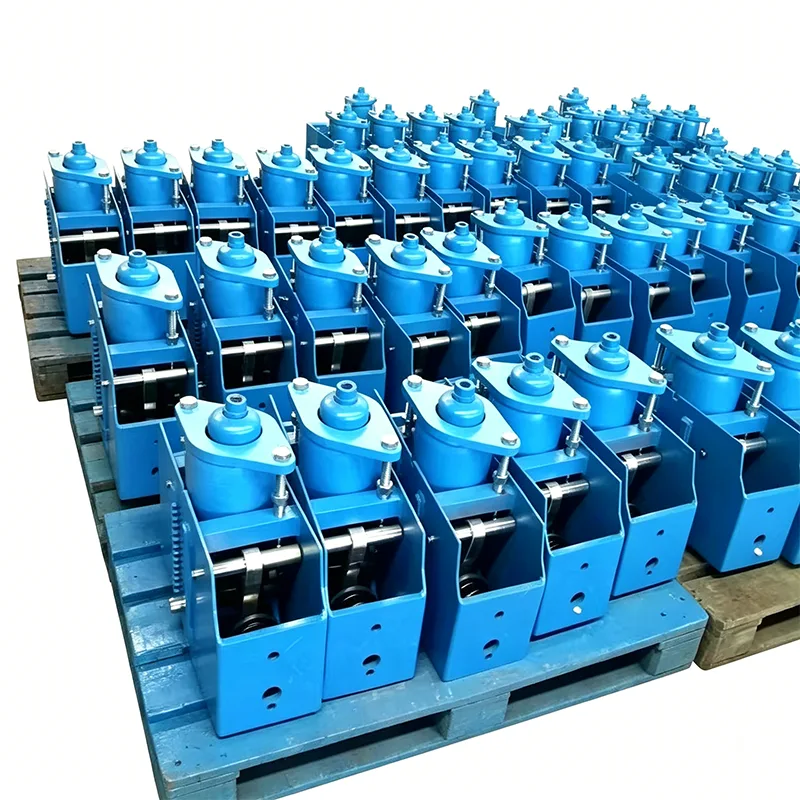

Our Cantilever Constant Spring Support adopts a precision combined structure of cantilever lever and spring, transforming complex mechanical balance into reliable engineering products. Its core technical parameters and structural features are as follows:

Engineering Application and On-Site Adaptability

In practical engineering applications, pipeline installation often faces complex space constraints. Our Cantilever Constant Spring Support fully addresses the pain points of on-site construction:

Accurate cold-state setting: Before delivery, we pre-compress and lock the spring at the cold-state load position according to the pipeline stress conditions and thermal displacement requirements provided by customers. During on-site installation, only fine adjustment of the threaded column is required to reach the design state, greatly shortening the construction period.

Flexible rooting methods: The cantilever structure adapts to various rooting conditions. Whether it is steel structure beams, concrete foundations or equipment bodies, stable rooting can be achieved through matching root connectors (such as welded single plates, pipe clamp cross arms, etc.).

Visualized operation status: Equipped with high-precision displacement indicator plates and load scales, operation and maintenance personnel can intuitively judge whether the pipeline is at the designed working position without disassembling the shell, facilitating daily inspection and preventive maintenance.

Strict Manufacturing and Quality Control System

As a key line of defense for pipeline safety, the entire production process of Cantilever Constant Spring Support follows strict quality control standards:

Welding and non-destructive testing: All load-bearing welds undergo appearance inspection and non-destructive testing (radiographic/ultrasonic testing) in accordance with relevant national standards to ensure foolproof structural strength.

Fatigue life testing: Spring components undergo strict fatigue tests and heat treatment processes to ensure no plastic deformation or fracture occurs during hundreds of thousands of thermal alternating cycles.

Factory locking and protection: Each unit is equipped with a positioning pin before delivery, locking the lever at the cold-state working position to prevent damage to the spring caused by accidental displacement during transportation and installation.

Why Choose Tianshun's Cantilever Constant Spring Support?

Profound technical heritage: Relying on 14 years of industry experience and a professional R&D team, we provide full-process technical support from pipeline stress analysis, type selection calculation to installation guidance.

Global project verification: The products have been operating stably in power, petrochemical and energy projects in more than 40 countries around the world, withstanding the tests of multiple unit start-ups/shutdowns and extreme working conditions.

Customized service capability: For special space constraints or non-standard load requirements, we can provide customized cantilever structure design and engineering solutions.

Reliable after-sales guarantee: We have established a complete customer file and response mechanism, providing condition assessment, load re-setting and replacement guidance during shutdown maintenance, reducing the operation and maintenance risks of power plants.
