Pipeline expansion joints are flexible components installed in piping systems to absorb dimensional changes caused by thermal expansion and contraction, as well as to dampen vibration, reduce noise, and compensate for minor installation misalignment. Without expansion joints, thermal growth in long pipe runs would generate enormous stress that can damage pumps, valves, nozzles, and the pipe itself. Yangzhou Tianshun Pipeline Technology manufactures three main families of expansion joints — metal bellows, rubber, and fabric — each engineered for specific pressure, temperature, and media conditions.

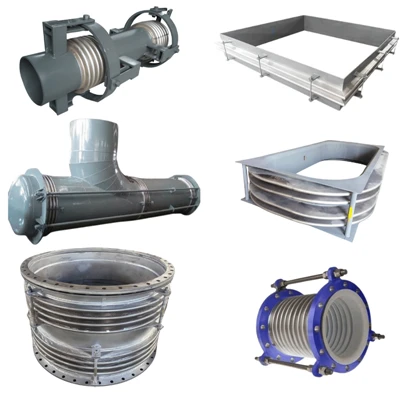

Metal expansion joints, also called bellows expansion joints, are built from one or more convoluted stainless steel bellows elements combined with end fittings such as flanges, weld ends, or threaded connections. They are designed for pressurized piping systems and can absorb axial, lateral, and angular movement individually or in combination.
Configurations range from simple single-axial units to complex tied, universal, hinged, and pressure-balanced designs that contain pressure thrust or restrict movement to specific planes. Bellows are typically formed from 304, 321, or 316L stainless steel, with high-alloy options such as Inconel or Hastelloy available for corrosive or high-temperature service. Pressure ratings cover full vacuum through to several hundred bar, depending on diameter and bellows ply count.
| Parameter item | Examples of common values |
| Nominal Diameter (DN) | DN50 - DN3000(Non-standard dimensions can be manufactured according to drawings.) |
| Design Pressure (PN) | PN10, PN16, PN25, PN40 |
| Design Temperature | -196°C to +800°C |
| Bellows Material | SS304, SS316L, Inconel 625 |
| Connection Type | Flange , Welding |
| Movement Capacity | Axial, Lateral, Angular (mm/°) |
| Fatigue Life | 1000, 3000, 5000 Cycles |
Rubber expansion joints offer a lightweight, vibration-damping alternative to metal units for lower-pressure applications. Constructed from reinforced synthetic rubber such as EPDM, NBR, neoprene, or PTFE-lined variants, they absorb thermal movement, reduce structure-borne noise, and compensate for misalignment between piping and equipment. They are widely used in water treatment, HVAC, pumping stations, and chemical transfer lines where corrosion resistance and shock absorption are priorities.

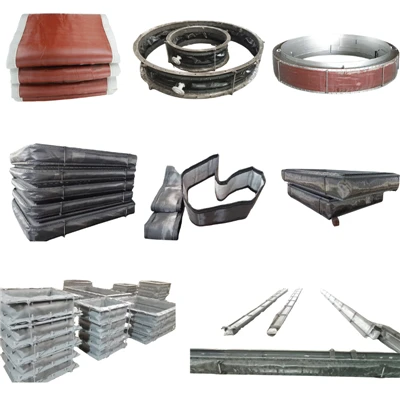

Fabric or non-metallic expansion joints are designed primarily for low-pressure ductwork and flue gas systems operating at high temperatures. They consist of multiple layers of high-temperature fabrics, insulation, and sealing materials framed by metal or steelwork. Capable of absorbing large amounts of axial, lateral, and angular movement with very low reaction force, fabric joints are common in power plants, waste-to-energy facilities, cement kilns, and industrial exhaust systems operating up to 1,000°C and beyond with appropriate insulation.
| Parameter Table | Examples of common values |
| Service Temperature | 400°C-1000°C |
| Operating Pressure | ± 50 kPa (Low Pressure) |
| Media/Gas Type | Flue Gas, Hot Air, Corrosive Gas |
| Fabric Layers | PTFE, Silicon, Ceramic Fiber |
| Face-to-Face Length | 200mm - 500mm (Customizable) |
| Frame Material | Carbon Steel, Q235, SS304 |
Our expansion joint range covers nominal diameters from DN25 (1 inch) up to DN4000 (160 inches) and larger for custom fabric units. Standard face-to-face dimensions follow common industry norms, and custom lengths, movement capacities, and end configurations are produced to order. Each joint is hydrostatically tested and cycle-tested as applicable, with full material traceability from coil to finished assembly.
All expansion joints are designed and manufactured in accordance with international standards including EJMA, ASME B31.1, ASME B31.3, EN 14917, and GB/T 12777. We also hold ISO 9001:2015 certification and can supply CE-marked units for the European market.
Integration with Pipe Support Systems
Expansion joints are almost always specified as part of a complete piping flexibility analysis, working alongside spring supports and rigid pipe supports to control both movement and load. On lines with significant vertical thermal growth, variable spring hangers or constant spring hangers carry the pipe weight while the expansion joint absorbs the axial and lateral displacement. For systems subject to dynamic events such as water hammer or seismic loading, hydraulic snubbers are often installed in parallel with expansion joints to restrain sudden movement while allowing gradual thermal displacement.
Our full product portfolio also includes pipe shoe supports, pre-insulated pipe supports for cryogenic and high-temperature lines, and a complete range of spring hangers and supports — allowing customers to source expansion joints and their associated support hardware from a single manufacturer.
Expansion joints are specified across virtually every sector of process industry: power generation (thermal, nuclear, renewable), oil and gas (refineries, pipelines, LNG terminals), water and wastewater treatment, petrochemical and pharmaceutical plants, mining and mineral processing, food and beverage production, district heating, and building HVAC systems.
Every expansion joint undergoes pressure testing and dimensional inspection before shipment from our 35,000 m² manufacturing facility in Jiangsu, China. Our engineering team supports customers with movement calculations, material selection guidance, and custom design reviews. Standard lead times run from two to four weeks depending on size and complexity, and rush orders can be accommodated by prior agreement. With more than 14 years of experience supplying pipeline components to over 45 countries, we serve EPC contractors, engineering firms, and end users worldwide.
What type of expansion joint should I choose — metal, rubber, or fabric?
Select based on pressure, temperature, and media. Metal bellows joints handle high pressure and a wide temperature range and are the default for process piping. Rubber joints excel at vibration damping and corrosion resistance in water and mild chemical service. Fabric joints are used for large-diameter, low-pressure, high-temperature ductwork such as flue gas and exhaust systems.
What movements can an expansion joint absorb?
Depending on design, expansion joints can absorb axial (compression/extension), lateral (perpendicular offset), and angular (rotation) movement, either individually or in combination. Single bellows units primarily handle axial movement, while universal, hinged, and gimbal designs are used for lateral and angular displacement.
Do I need spring supports when I install an expansion joint?
In most cases, yes. Expansion joints absorb thermal movement but are not designed to carry pipe weight. Variable spring hangers or constant spring hangers support the dead load of the pipe and contents while allowing the expansion joint to move freely. Proper support selection is part of a full pipe stress analysis.
What standards do your expansion joints follow?
Our metal expansion joints are designed per EJMA standards and comply with ASME B31.1, ASME B31.3, EN 14917, and GB/T 12777. Rubber and fabric units follow applicable ISO, EN, and ASTM standards. CE marking and third-party inspection are available on request.
What is the typical service life of an expansion joint?
Service life depends on temperature, pressure, movement cycles, media corrosion, and installation quality. A properly sized and installed metal bellows joint typically lasts 10 to 20 years in normal industrial service. Rubber and fabric joints generally have shorter lifespans and are considered replaceable wear items. We can provide fatigue cycle data for specific bellows designs on request.
