Metal Bellows Expansion Joint

Yangzhou Tianshun has manufactured metal bellows expansion joints since 2012. With 14 years of focused experience and a 35,000 m² factory staffed by over 100 qualified personnel, we supply standard and fully custom designs to more than 45 countries. Our expansion joints are built to EJMA standards and supported by material traceability, 100% non-destructive testing, and hydrostatic proof testing on every unit.

Why reliability goes into the design, not just the brochure

Fatigue life calculated, not assumed

Cycle life is determined per EJMA guidelines for the actual operating envelope — covering axial, lateral, and angular movements simultaneously. Standard designs are verified for 1,000, 3,000, or 5,000 full cycles, ensuring the joint performs as predicted across thermal cycles, not just on paper.

Material integrity backed by paperwork

Every heat of bellows material — SS304, SS316L, SS321, Inconel 625, or Hastelloy — comes with full mill certificates and traceability records. For corrosive services such as FCCU catalyst lines or chemical transfer, we recommend and stock high-nickel alloys that resist chloride stress corrosion cracking.

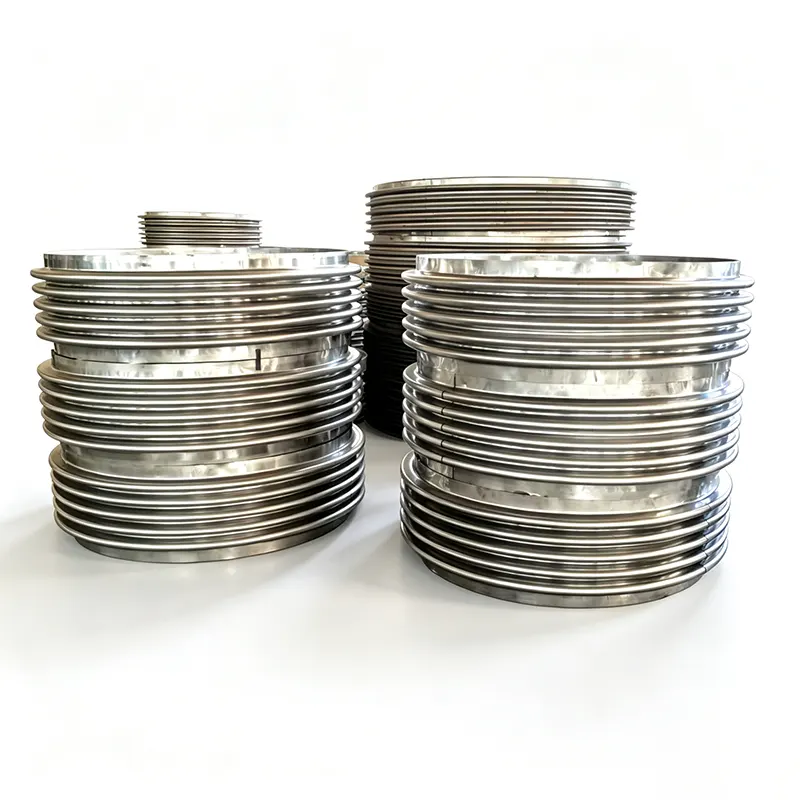

Multi-ply construction with a built-in tell-tale

Where pressure or safety demands it, we use multi-ply bellows rather than single-ply. The layered structure adds strength, maintains flexibility, and introduces a safety redundancy: should the inner ply ever perforate, the outer ply holds pressure temporarily while the leak is detected through the tell-tale hole — predictable maintenance instead of unplanned shutdown.

Welds that go through 100% NDT

Bellows longitudinal and circumferential seams, as well as attachment welds, undergo 100% radiographic (RT) or penetrant (PT) examination. Our in-house welders hold qualified procedures, and before shipment every unit is hydrostatically tested at 1.5 times design pressure. No sampling — every joint leaves the factory with its own test report.

Stability against squirm and resonance

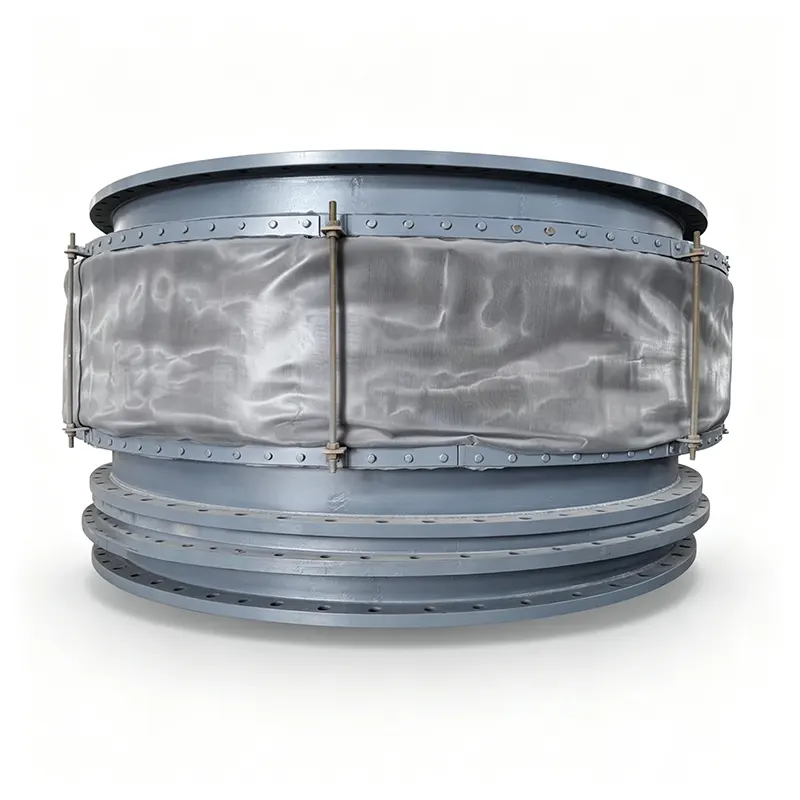

Column squirm and in-plane buckling are prevented through properly calculated root mean square pressure stress and proven anti-squirm features. Internally, flow liners reduce turbulence, erosion, and flow-induced vibration; external covers or tie rods are designed to protect the bellows element and guide movement — not just added as standard accessories, but sized for the specific service.

Technical scope

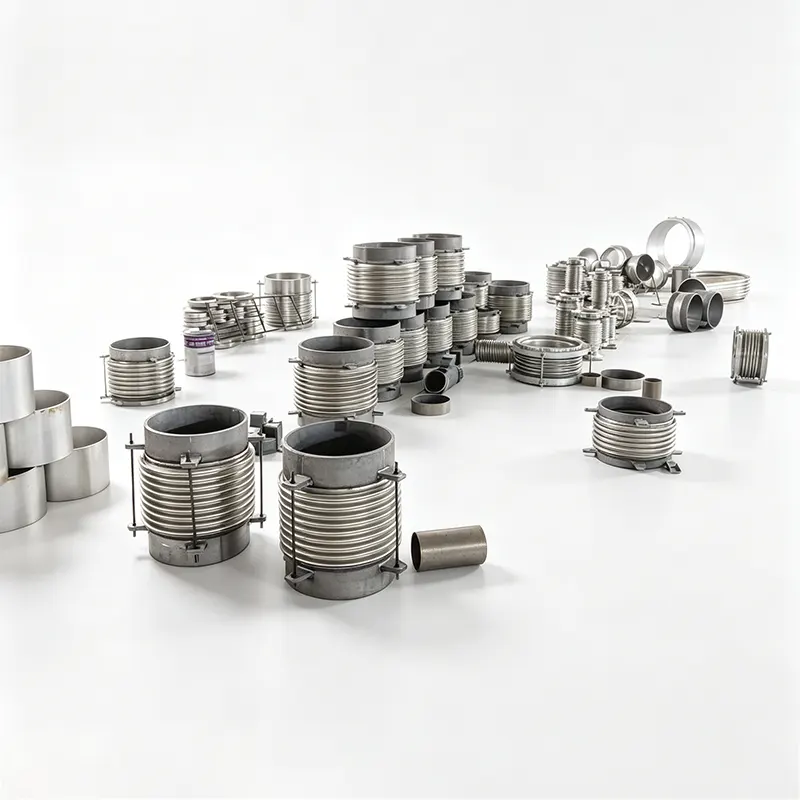

Types matched to pipe loads, not just catalogue codes

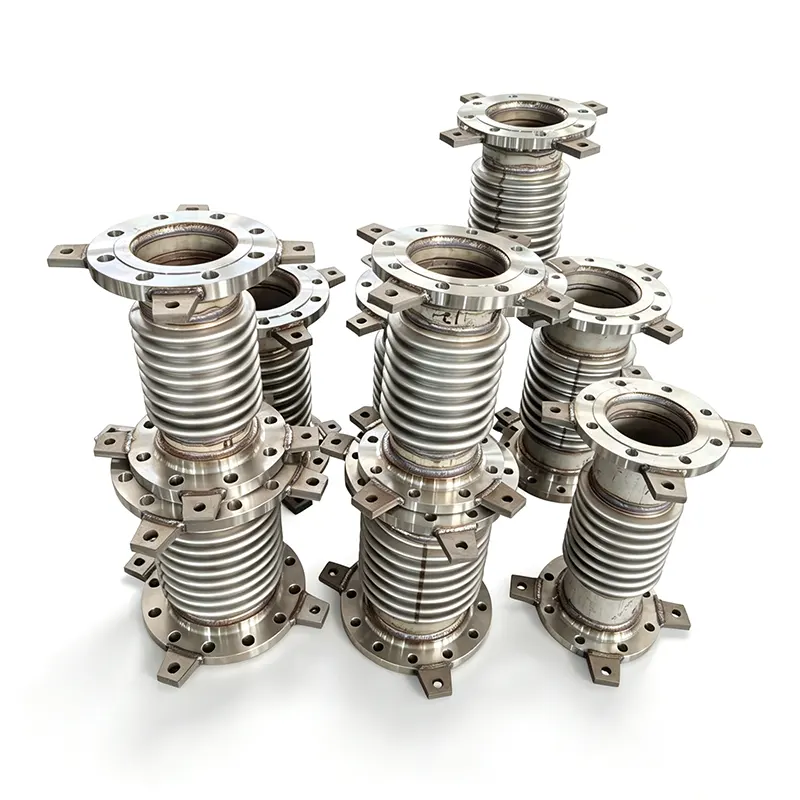

Axial bellows expansion joints – for straight-run thermal expansion where anchors and guides handle pressure thrust.

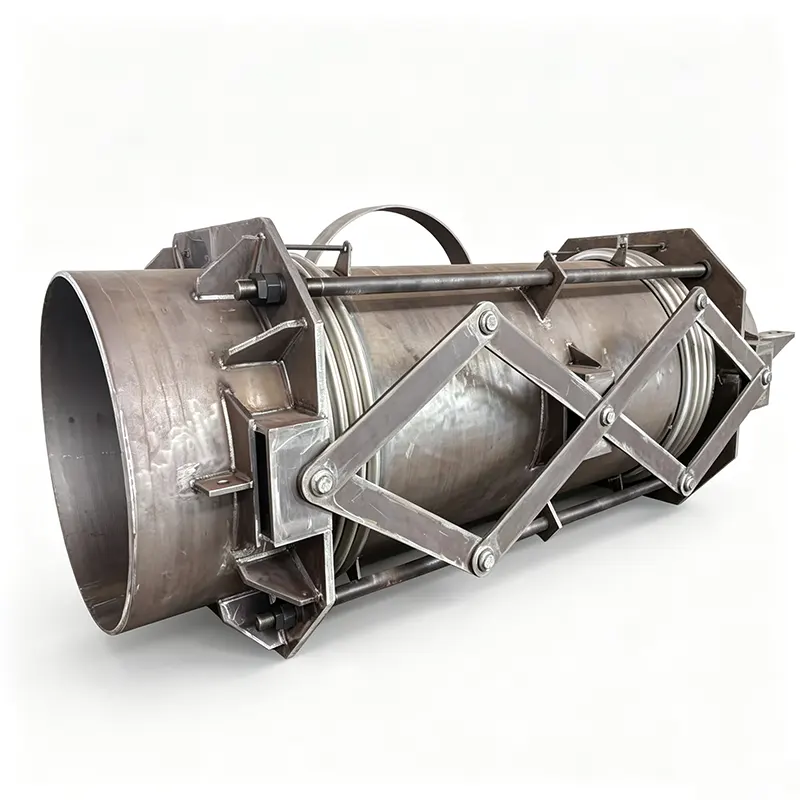

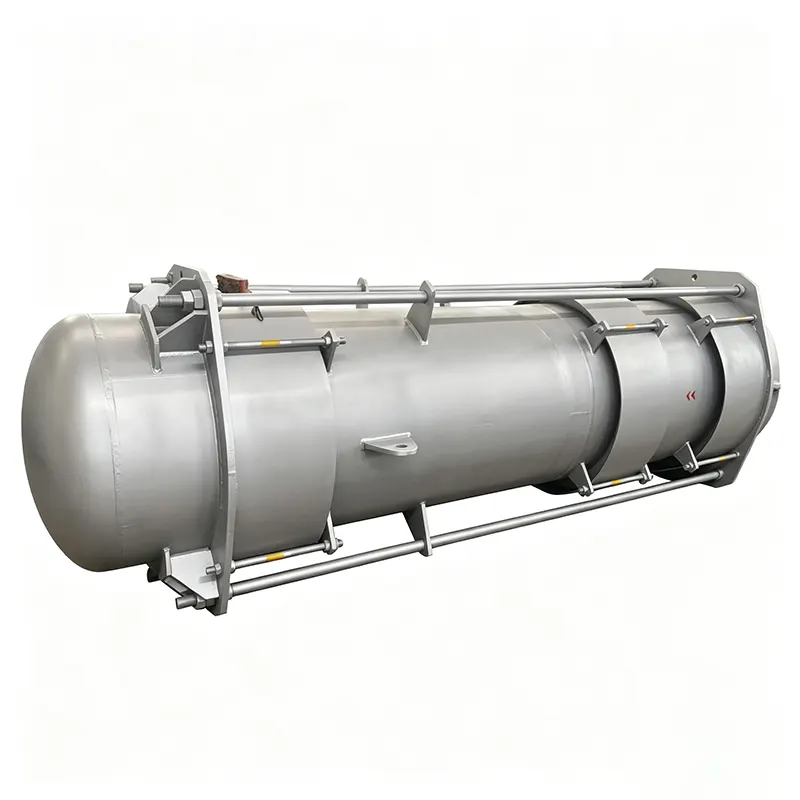

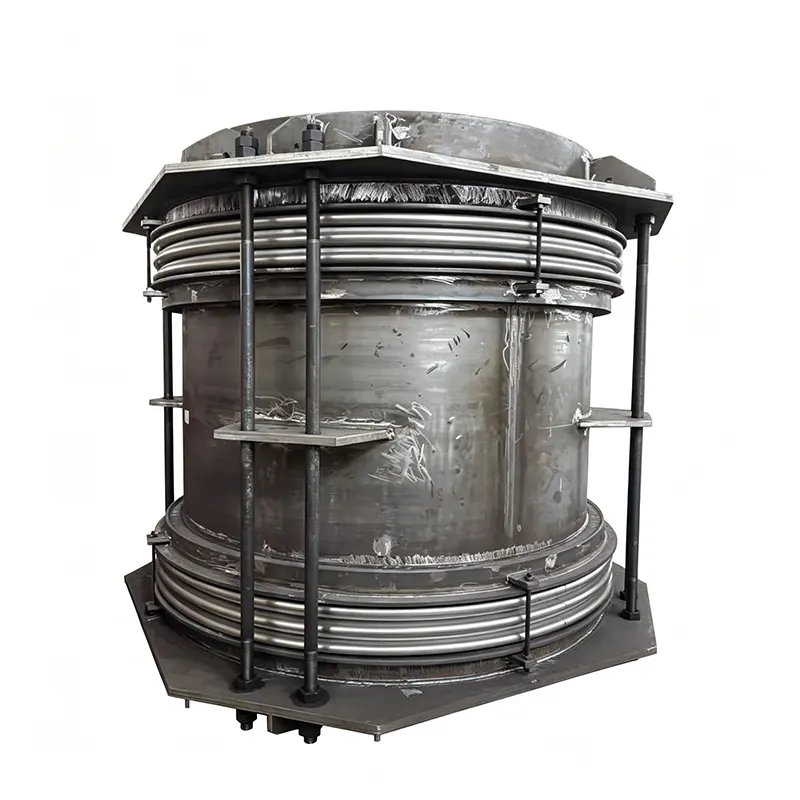

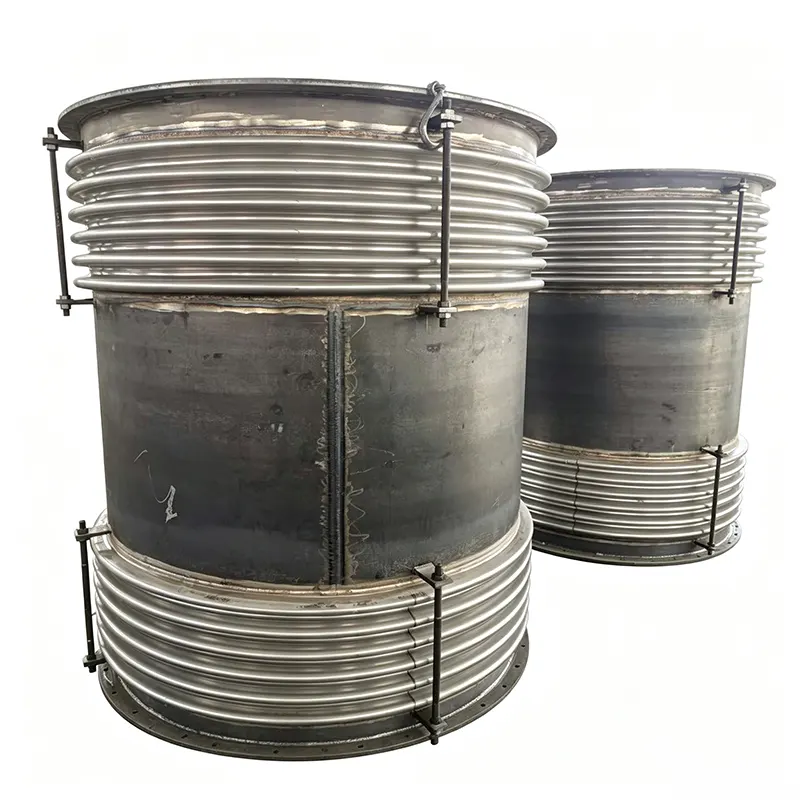

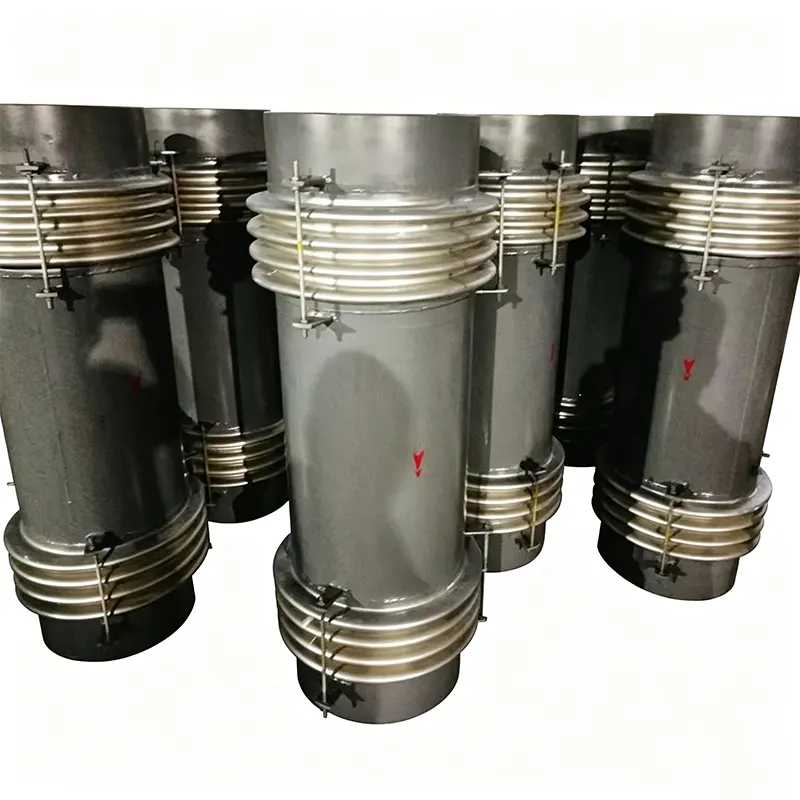

Universal expansion joints (tied) – absorb large lateral and angular movements with tie rods taking the pressure thrust; widely used in pump rooms across Southeast Asia to protect pump casings.

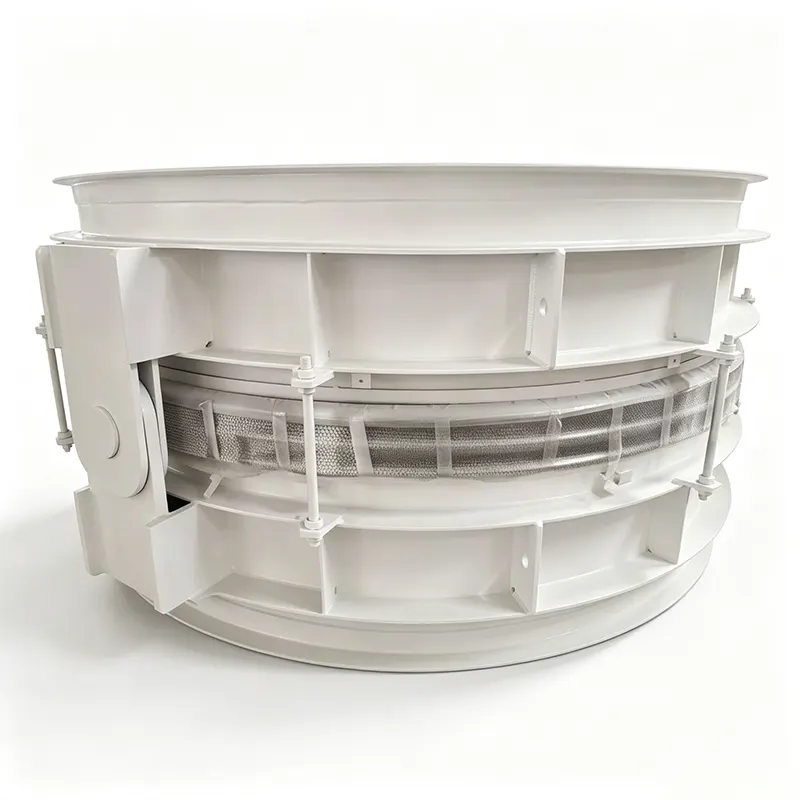

Hinged bellows joints – restrict movement to a single angular plane, ideal for absorbing expansion in a z-shaped pipe leg while restraining pressure thrust.

Gimbal expansion joints – allow angular movement in multiple planes, often paired in sets to absorb complex piping system movements.

Pressure balanced expansion joints – eliminate pressure thrust force on connected equipment such as turbines and heat exchangers, critical where bellows thrust cannot be transferred to anchors.

Externally pressurized bellows – used where large axial compression is needed, or where the bellows must be protected from external damage and turbulent flow.

Every type is configured with the correct inner sleeve, external cover, and guidance recommendations for the application — not shipped as a bare bellows unless explicitly requested.

Where they work, and how material choices follow the process

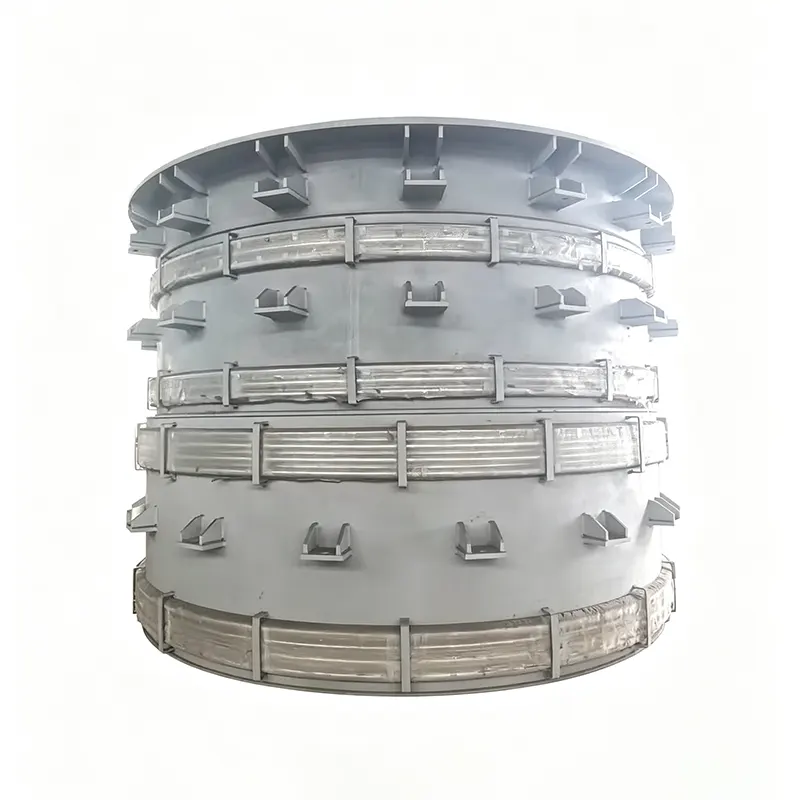

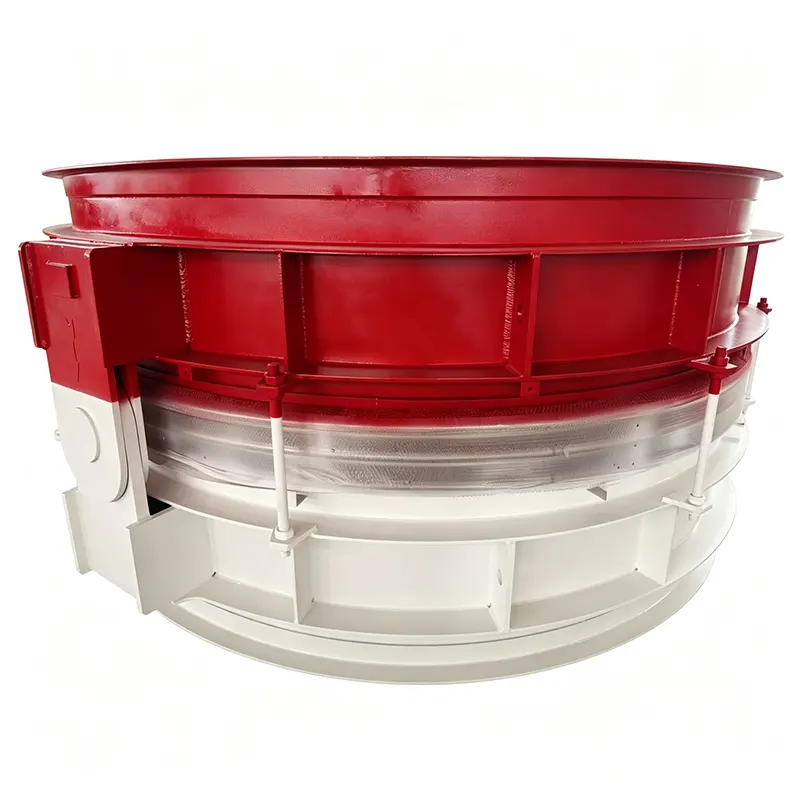

Power generation – turbine exhaust, boiler coal powder ducts, district heating circulation lines. Large diameters, high temperatures, combined movements. Inconel 625 or SS321 are typical for temperature and fatigue resistance.

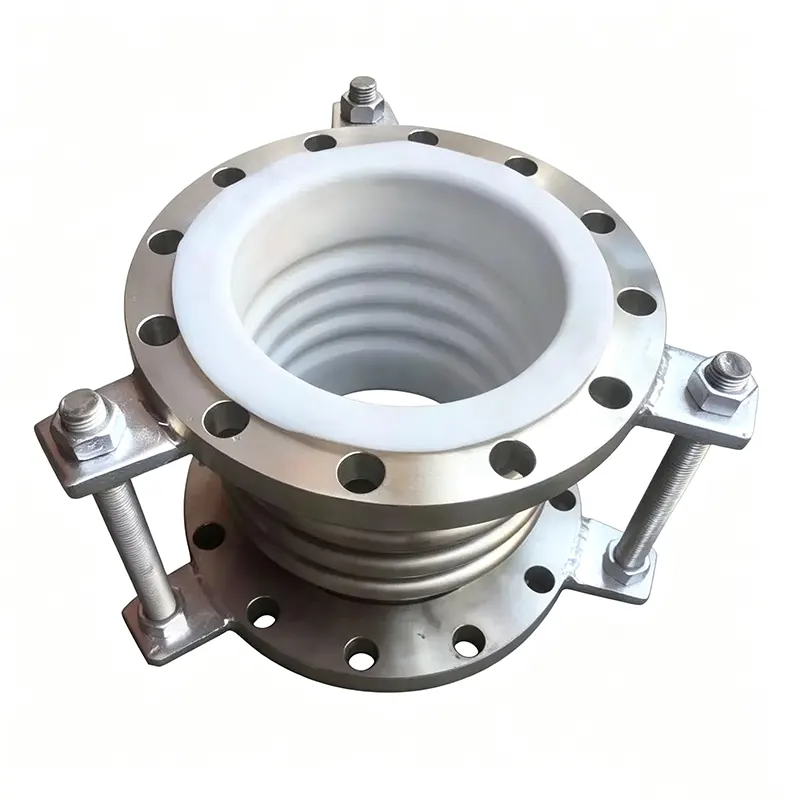

Refineries and petrochemical plants – FCCU, heat exchanger trains, oil transfer piping. Corrosion-resistant alloys such as Inconel 625 or Hastelloy are selected based on sulfur content, chlorides, and operating temperature.

District heating and HVAC – steam mains, chilled water circuits. Emphasis on proven axial cycle life; carbon steel and SS304 bellows with external protective coatings are common.

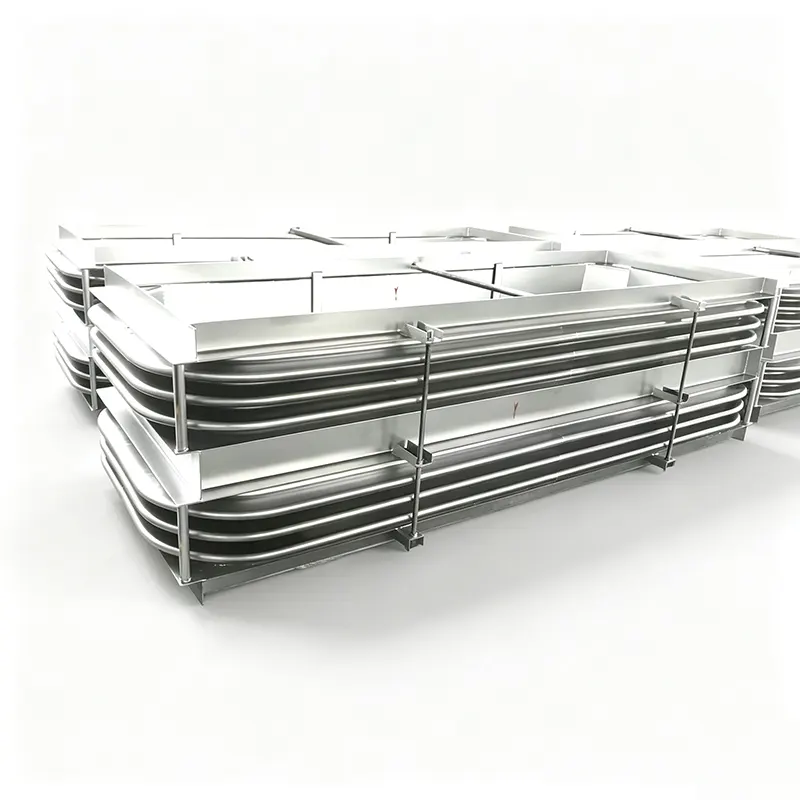

Steel mills and metallurgical processes – hot blast stoves, coking systems, dust extraction ducts. When service temperatures exceed 800 °C, we advise whether a metallic bellows with internal lining can be engineered, or whether alternative compensation such as refractory-lined rectangular units is more appropriate. Honest engineering guidance, not a forced sale.

Water treatment and pump stations – pump discharge vibration isolation, long-distance water transfer. Tied expansion joints restrain the pressure thrust and prevent it from being transmitted to pump flanges and concrete thrust blocks.

Certifications and repeat evidence

Our quality system is certified to ISO 9001:2015. Products meet CE marking requirements where applicable, and designs can be verified to ASME or API standards when specified. The best proof, however, is repeat business: over 70% of our orders come from long-term partners who reorder because product performance matches the data sheets.

What working with Tianshun looks like

You deal with a dedicated account manager who understands the product technically, not just commercially.

Inquiries receive a substantive reply within 24 hours, including preliminary selection advice if you share basic operating data.

Engineering team provides material recommendations, movement calculations, and installation guidance.

Custom designs — from non-standard diameters to exotic material combinations — are handled routinely, not as exceptions.

Production scheduling is transparent; on-time dispatch is the norm.

After-sales support includes installation supervision and maintenance consultation for the life of the joint.

Yangzhou Tianshun Pipeline Technology Co., Ltd.

35,000 m² facility, Jiangsu, China – shipping to over 45 countries.

We don’t just sell expansion joints. We make sure they work correctly in your system.
