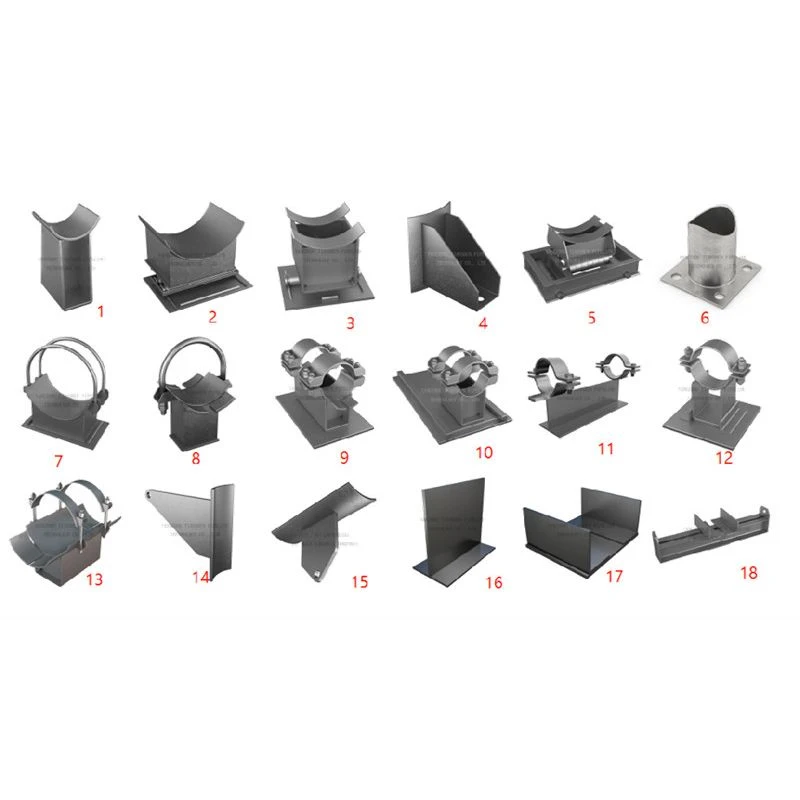

Shoe Support for Insulated Pipe

On an insulated pipe, a standard pipe shoe can create more problems than it solves. If the shoe’s load path cuts through the insulation, the insulation crushes over time. That crushed section lets heat in or out, forms condensation on cold surfaces, and becomes a starting point for corrosion under insulation. The fix isn’t complicated — a properly designed shoe support for insulated pipe separates the load-bearing function from the thermal function — but it takes careful engineering to get the details right.

At Yangzhou Tianshun, we have designed and fabricated insulated pipe shoes for projects on five continents since 2012. We have supplied them for district cooling networks where every watt of heat gain matters, for steam lines where a bare metal shoe would waste energy and create a burn hazard, and for LNG facilities where a cold spot on a support can lead to ice buildup and structural damage. In each case, the requirement is the same: carry the pipe’s weight reliably while keeping the insulation continuous and the vapor barrier sealed.

How an Insulated Pipe Shoe Actually Works

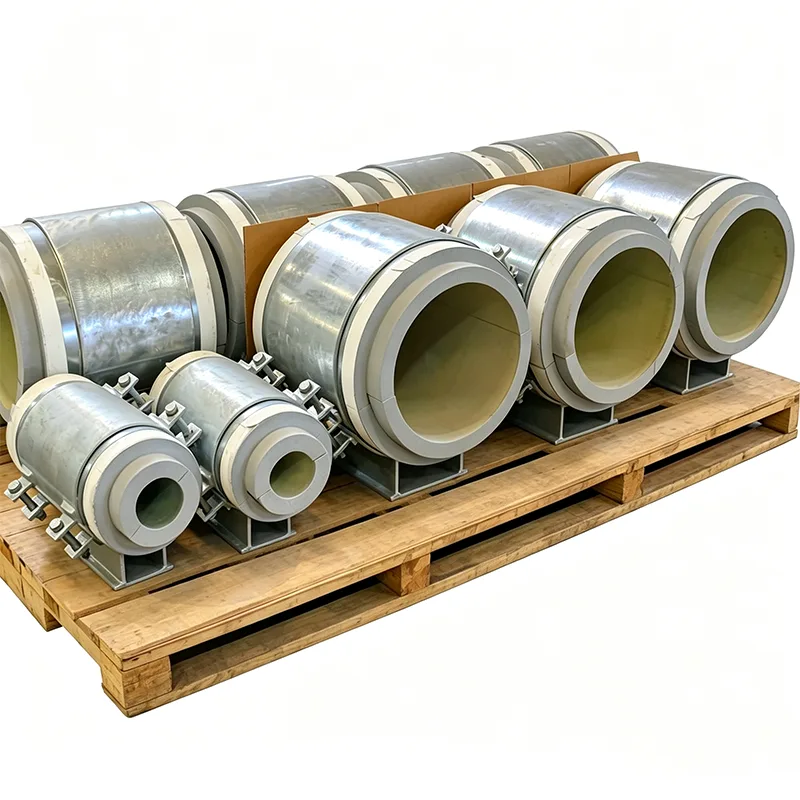

The core idea is simple — a rigid, load-bearing insulation block sits between the pipe and the metal support cradle. The pipe rests on the insulation, the insulation sits in the shoe, and the metal shoe transfers the load to the structure. But getting that block to survive years of pipe movement and thermal cycling without cracking, shifting, or losing its insulating performance requires the following:

The block material is selected for the temperature range. For chilled water and cold services down to about -50°C, we typically use high-density polyisocyanurate (PIR) or cellular glass. For steam and hot oil lines up to 400°C and beyond, we use calcium silicate or perlite-based materials. The key property is compressive strength at the design temperature — what holds up at room temperature might soften at 200°C.

The insulation block is fully encapsulated. A metal retaining ring or a welded shoe sidewall surrounds the block on all sides, preventing it from walking out under lateral pipe movement or vibration. The block sits on a steel base plate with a continuous weld, so there is no direct metal-to-pipe path for heat to bypass the insulation.

The vapor barrier path is designed to be uninterrupted. On cold pipes, moisture ingress is the enemy. We make sure that the shoe design allows the site-applied vapor barrier on the pipe insulation to seal continuously onto the shoe’s insulation block or its metal jacket, with no gaps that would let humid air reach the cold surface.

Design Flexibility That Matches Real Site Conditions

We don’t treat insulated pipe shoes as off-the-shelf items because no two insulation specifications are exactly alike. We build each shoe to match:

Your pipe diameter and insulation thickness (whether it’s 25 mm of foam glass or 150 mm of mineral wool).

The type of field-applied insulation system — we can pre-cut the secondary insulation to fit around the shoe body and provide a cladding profile that simplifies site finishing.

The pipe movement conditions. If the pipe is sliding, we can integrate a PTFE or graphite-impregnated slide plate onto the shoe base, with the low-friction surface bonded to a stainless steel load-bearing sheet that protects the insulation block from shear forces.

Special requirements like fire-rated insulation, anti-abrasion coatings on the metal parts, or drainage holes to prevent water pooling in outdoor installations.

What You Get With Every Shipment

A Tianshun insulated pipe shoe order includes all the documentation your inspector will ask for:

EN 10204 Type 3.1 certificates for the steel components.

Insulation material datasheets with compressive strength and thermal conductivity values at design temperature.

Dimensional inspection reports confirming the block thickness, shoe height, and base plate dimensions.

Load test certificates if required by the project specification.

Applications

Chilled water and brine piping in district cooling plants and data centers

Steam and condensate lines in industrial plants and power stations

LNG and cryogenic liquid piping where cold spots must be absolutely avoided

Refrigeration and cold storage facilities

Any insulated pipe running on a pipe rack, where energy efficiency and long-term maintenance costs matter

Why Tianshun?

We are a specialist support manufacturer, not a general pipe fitting supplier. When you send us your piping line list and insulation specification, our engineering team will check the load on each shoe, confirm the insulation material compatibility, and flag any locations where the standard shoe dimensions won’t fit the available structure. This level of scrutiny catches problems on the drawing board, not during installation. Over 70% of our business is repeat — a direct result of delivering shoes that function exactly as expected from the first hydrotest to the end of the design life.

FAQ

Q: Can you match my insulation type and thickness exactly?

A: Yes. We size the shoe and the load-bearing block to your pipe diameter, insulation material, and specified thickness without any compromise.

Q: Do you provide the insulation block or do I install it on site?

A: We supply the shoe with the load-bearing insulation block already bonded and encapsulated inside. The surrounding secondary insulation and cladding are typically applied on site, but we can also pre-fabricate insulation kits.

Q: How do you prevent heat from traveling through the metal shoe body?

A: The insulation block creates a thermal break between the pipe and the metal base. The shoe sidewall does not contact the pipe directly, so there is no continuous metal path for heat to bypass the insulation.

Q: What if my pipe moves axially due to thermal expansion?

A: We can add a PTFE or graphite slide plate to the base of the shoe, allowing the pipe to move while keeping the insulation block stable.

Q: What standards do these shoes comply with?

A: Steel fabrication follows MSS SP-58 and MSS SP-69. Insulation materials are supplied to project-specific ASTM or EN standards, and we can meet CE marking requirements under the PED where applicable.
