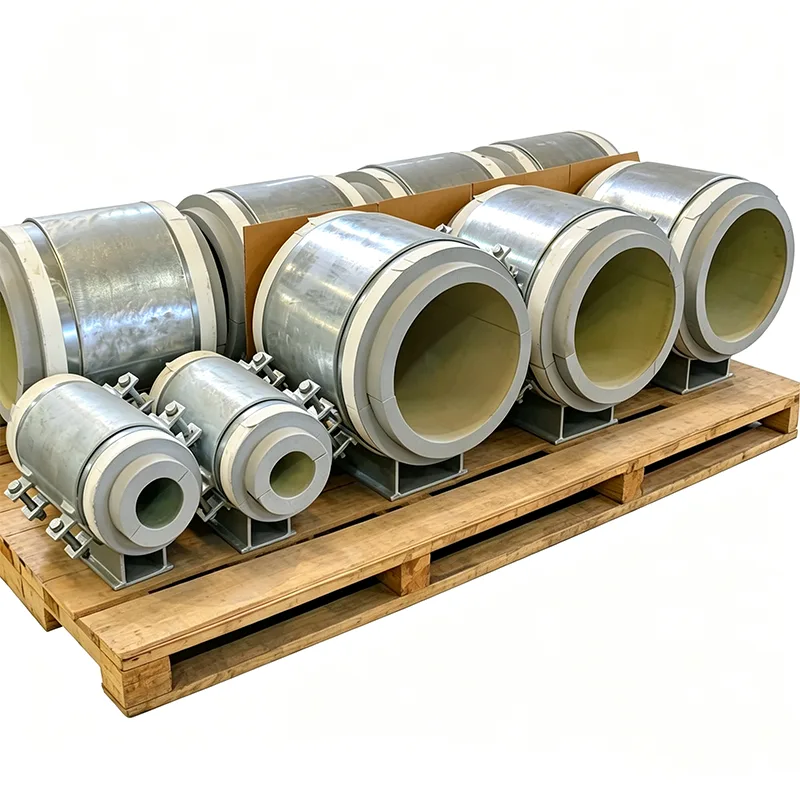

Cold Shoe Insulated Pipe Supports

When a pipe carries media at sub-zero temperatures, every metal-to-metal contact with the supporting structure becomes a thermal short circuit. Cold travels down the steel, chills the support beam, and pulls moisture out of the air. The result is ice on the structure, dripping water, and corrosion that can undermine the support long before the pipe itself shows any sign of trouble. A cold shoe stops that chain of events at the source.

At Yangzhou Tianshun, we’ve been fabricating Cold Shoe Insulated Pipe Supports since 2012 for ethylene terminals, ammonia refrigeration plants, chilled water networks, and LNG tank secondary containment areas. The working principle hasn’t changed: insert a thermally resistant yet structurally rigid block between the cold pipe and the warm steel. The engineering challenge — and the difference between a cold shoe that works for five years and one that holds up for three decades — is in how that block is contained, sealed, and matched to the specific cold-service conditions.

How a Cold Shoe Interrupts the Thermal Path

A cold pipe rests inside a contoured metal cradle, but it doesn’t touch the cradle’s steel directly. Instead, a high-density insulation block bears the pipe’s weight. That block is chosen not just for its thermal conductivity but for its compressive strength at the lowest operating temperature. For most applications down to -196°C, we use cellular glass or high-density PIR. The block is machined to fit the pipe’s outer diameter on one face and the shoe’s base plate on the other, ensuring full surface contact and no point loading.

The Cold Shoe Insulated Pipe Supports’s sidewalls enclose the insulation block on all four sides. This does two things: it prevents the block from shifting under lateral pipe movement, and it protects the insulation from mechanical damage. The steel base plate beneath the block is the sole load path to the structure, and because the block is a continuous solid layer, there is no direct metal-to-pipe conduction path — the cold bridge is broken.

Keeping Moisture Out for the Long Haul

On a cold pipe, any gap in the vapor barrier becomes a condensation point. Water accumulates, freezes, and expands, eventually destroying the insulation from the inside. Our cold shoe design addresses this in three ways:

The insulation block itself is closed-cell, offering very low water vapor permeability even if the outer jacket is damaged.

We provide a continuous metal jacketing profile around the shoe body. Site-applied vapor barrier on the pipe insulation can be sealed directly to this jacket with adhesive or tape, creating an unbroken envelope.

For outdoor installations or washdown areas, we apply a bead of flexible sealant between the shoe sidewall and the pipe insulation jacket at the interface, adding a secondary moisture barrier.

Materials That Stay Tough at Low Temperatures

The structural steel parts of a cold shoe must not become brittle when cold. Standard structural carbon steel loses notch toughness well above freezing. For cold shoe bodies and base plates, we use:

Low-temperature carbon steel (ASTM A350 LF2 or equivalent) for services down to -46°C.

Austenitic stainless steel (304L, 316L) for cryogenic applications down to -196°C, where carbon steel would be brittle.

All load-bearing steel comes with Charpy impact test values at the design minimum temperature on the EN 10204 Type 3.1 certificate. Bolting is A320 L7 or stainless, selected to match the body material.

Accommodating Cold Shrinkage

A cold pipe contracts. A 20-meter stainless steel line cooling from ambient to -162°C shrinks by over 30 millimeters. If the cold shoe is fixed rigidly to the structure, that movement transfers into the pipe wall as axial stress. We handle this by integrating a low-friction slide plate into the cold shoe’s base. A polished stainless steel sheet is bonded to the underside of the insulation block or to the top of the base plate, and a PTFE or graphite-impregnated pad is attached to the opposing surface. The shoe can then slide with the pipe while maintaining the thermal break. The slide surface is sized to accommodate the full cold-to-ambient travel range with a safety margin.

What Comes With Your Cold Shoe Order

Every Cold Shoe Insulated Pipe Supports we ship is backed by a documentation package that satisfies EPC inspection requirements:

EN 10204 Type 3.1 for all steel parts, with low-temperature impact test reports.

Insulation block datasheets showing thermal conductivity and compressive strength at the design cold temperature.

Dimensional reports confirming block thickness, shoe offset (if any), and base plate dimensions.

Slide plate coefficient of friction test certificates, when applicable.

Applications

LNG and NGL piping supports in terminals and liquefaction plants

Ethylene, propylene, and liquid ammonia storage and transfer lines

Chilled water and brine pipe racks in district cooling and data centers

Refrigeration lines in food processing and cold storage facilities

Cryogenic pipe galleries in air separation units

Why Tianshun for Cold Shoes?

A cold shoe is a small component with an outsized impact. If it fails, the entire insulation system is compromised, and the resulting ice can overload pipe racks. Our engineers don’t pick a standard block and hope it fits — they cross-check your pipe size, insulation specification, design temperature, and structural loads, and then configure a shoe that maintains the insulation envelope without compromise. Over 70% of our customers place repeat orders, because they know that the cold shoes they receive will perform exactly as calculated from the first cooldown to the last.

FAQ

Q: What’s the lowest temperature your cold shoes can handle?

A: Down to -196°C for LNG and liquid nitrogen. For liquid helium, we use specialized materials — contact our team.

Q: Can you match our existing insulation specification and vapor barrier details?

A: Yes. We machine the insulation block to your pipe OD and insulation thickness, and we can configure the jacket sealing interface to your cladding type.

Q: Do I need to install a separate slide plate, or is it built into the shoe?

A: We can integrate the slide plate during fabrication. You get a single assembly that handles both thermal break and axial movement.

Q: How do you prevent ice from forming on the metal parts of the shoe?

A: The cold steel surfaces are isolated from ambient air by the site-applied insulation and cladding that run continuously over the shoe body. We provide the sealing profiles; the site crew seals the edges.
