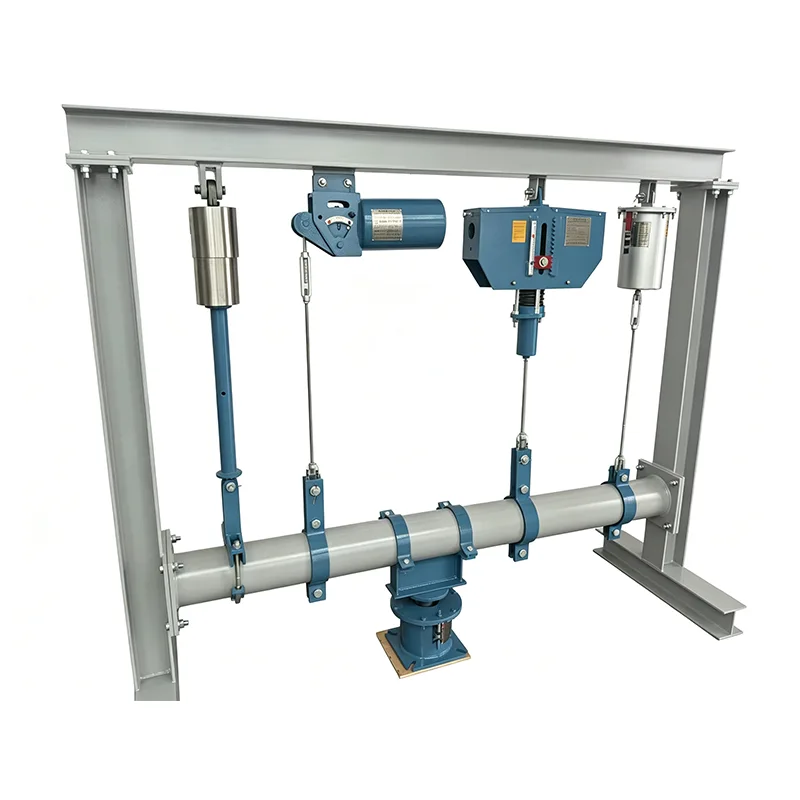

Energy Pipeline Constant Spring Support

In natural gas, LNG, hydrogen energy and traditional energy transmission pipeline networks, pipeline systems often span complex geographical environments and withstand severe thermal expansion and contraction. Backed by 14 years of technical accumulation in pipeline support technology, Yangzhou Tianshun Pipeline Technology Co., Ltd. has specially developed the Energy Pipeline Constant Spring Support for energy transmission scenarios. This product adopts a precision moment equilibrium mechanism to ensure that the support load remains constant when the pipeline undergoes large-span vertical displacement. This feature effectively avoids additional stress caused by load transfer to sensitive equipment such as valves and compressors, and is a key component ensuring the safe and stable operation of long-distance energy pipeline networks.

Product Technical Specifications

Engineering Adaptability and Operation & Maintenance Advantages

In the actual construction and operation of energy pipelines, the design of Energy Pipeline Constant Spring Support fully addresses the pain points of on-site construction and later maintenance:

Cold-state locking and fast installation: Before delivery, the spring is pre-compressed and locked at the cold-state installation position according to the pipeline system stress calculation report. On-site, only simple thread fine-tuning and rooting fixation are required to reach the designed stress state, greatly shortening the construction period of pipe galleries.

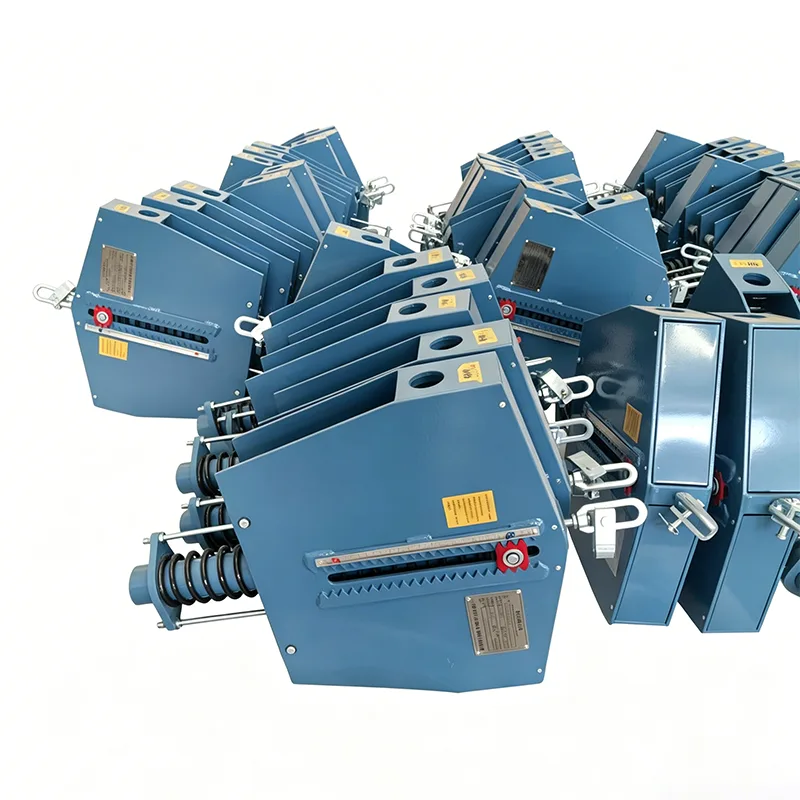

Visualized operation monitoring: Equipped with external high-precision displacement indicator plates and load scales, operation and maintenance personnel can intuitively judge whether the pipeline is at the designed working position during daily inspection without disassembling the shell, facilitating timely detection of pipeline settlement or abnormal deformation.

Flexible rooting methods: A variety of root connection solutions are provided (such as welded single plates, hoops, steel structure connectors, etc.), which can achieve stable rooting whether for overhead pipe galleries, river-crossing pipe bridges or equipment bodies.

Strict Manufacturing and Quality Control System

As the safety defense line of energy infrastructure, the entire production process of Energy Pipeline Constant Spring Support follows strict quality control standards:

Non-destructive testing: All load-bearing welds and key stress components undergo appearance inspection and non-destructive testing (radiographic/ultrasonic testing) in accordance with relevant national standards to ensure foolproof structural strength.

Fatigue life verification: Spring components undergo strict fatigue tests and heat treatment processes to ensure no plastic deformation or fracture occurs during hundreds of thousands of thermal alternating cycles.

Factory locking and protection: Each unit is equipped with a positioning pin before delivery, locking the lever at the cold-state working position to prevent damage to the spring caused by accidental displacement during transportation and hoisting.

Why Choose Tianshun's Energy Pipeline Constant Spring Support?

Profound energy project experience: The products have been operating stably in LNG terminals, natural gas long-distance transmission pipelines and refining projects in more than 40 countries around the world, withstanding the tests of extreme climates and complex working conditions.

Full-process engineering support: We provide full-process technical services from pipeline stress analysis (CAESAR II simulation), type selection calculation to on-site installation guidance, ensuring that each support accurately matches the working conditions.

Reliable supply chain delivery: Relying on automated production lines and complete testing equipment at our Jiangsu base, we ensure on-time and high-quality delivery of materials for large-scale energy projects.

Full life cycle support: We establish exclusive project files and provide condition assessment, load re-setting and replacement guidance during shutdown maintenance, reducing the operation and maintenance risks of pipeline networks.
